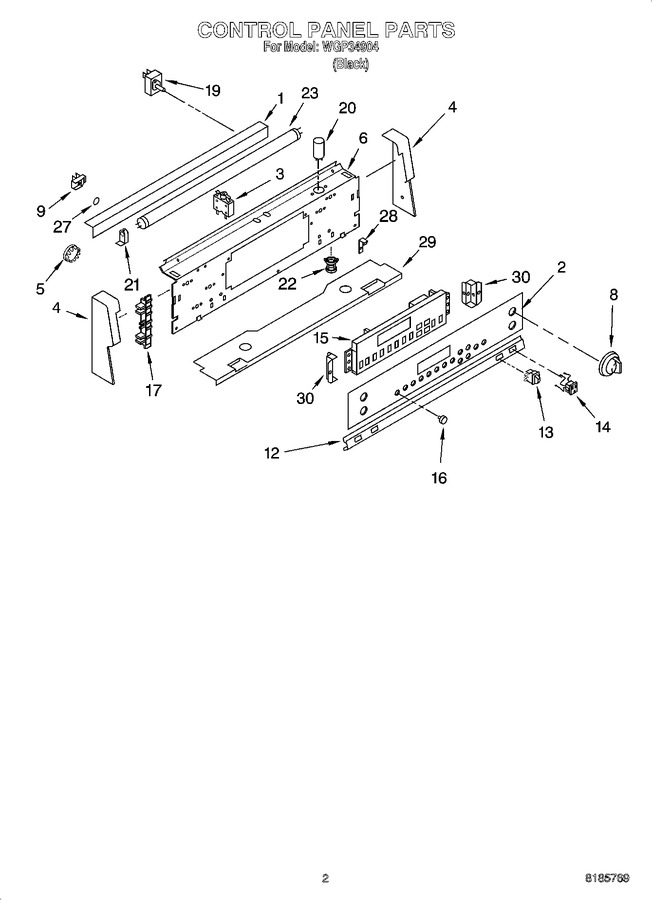

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9752431PB		Lamp Cover		Appelez-nous	-
2	9752816		Console-glass (control Panel)		Appelez-nous	-
3	3191072		Breaker, 15amp. (2)		Appelez-nous	-
4	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
4	9752422FB		End Cap (left)		Appelez-nous	-
4	9752423FB		End Cap (right)		Appelez-nous	-
5	9780577		Button Plug (8 Mm (2))		Appelez-nous	-
6	9780852		Screw, (2) 8 X 3/8		Appelez-nous	-
6	3191070		Panel, Control		Appelez-nous	-
6	9752854		Spacer		Appelez-nous	-
8	9752405FB		Knobs, Control (4)				$ 17.20
9	313102		Light, Indicator (2) (burners)				$ 66.48
12	9752443PB		Trim Strip		Appelez-nous	-
13	3191102FB		Switch, Oven Light		Appelez-nous	-
14	9751480FB		Outlet, Untimed (2)		Appelez-nous	-
15	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
15	9752854		Spacer, Timer		Appelez-nous	-
15	9753631CP		Timer   (Replaces: 9753631)		Appelez-nous	-
16	9781954FB		Knob, Timer (17)				$ 14.66
17	9753076FB		Insert (2)		Appelez-nous	-
19	WP3400882		Screw (8) 8-32 X 3/16   (Replaces: 3400816)			Immediately	$ 7.55
19	WP9750643		Infinite Switch (1400w (2))   (Replaces: 9750643)			Immediately	$ 145.12
19	WP9750646		Infinite Switch (2400w (2))   (Replaces: 9750646)			Immediately	$ 98.69
20	9781118		Starter, Light		Appelez-nous	-
21	9752760		Lampholder (2)		Appelez-nous	-
22	9750866		Starter, Holder		Appelez-nous	-
23	WP95292		Light, Fluorescent   (Replaces: 422581)			Immediately	$ 134.94
27	WP9750343		Lens, Indicator (2)   (Replaces: 9752589)			Immediately	$ 6.00
28	9780265		Screw (2)		Appelez-nous	-
28	9753017		Clip, Spring (2)		Appelez-nous	-
29	WP3400832		Screw (3)   (Replaces: 3196168)			Immediately	$ 8.18
29	9752439		Base, Console		Appelez-nous	-
30	9780265		Screw, (4)		Appelez-nous	-
30	9753304		Bracket, Timer		Appelez-nous	-
