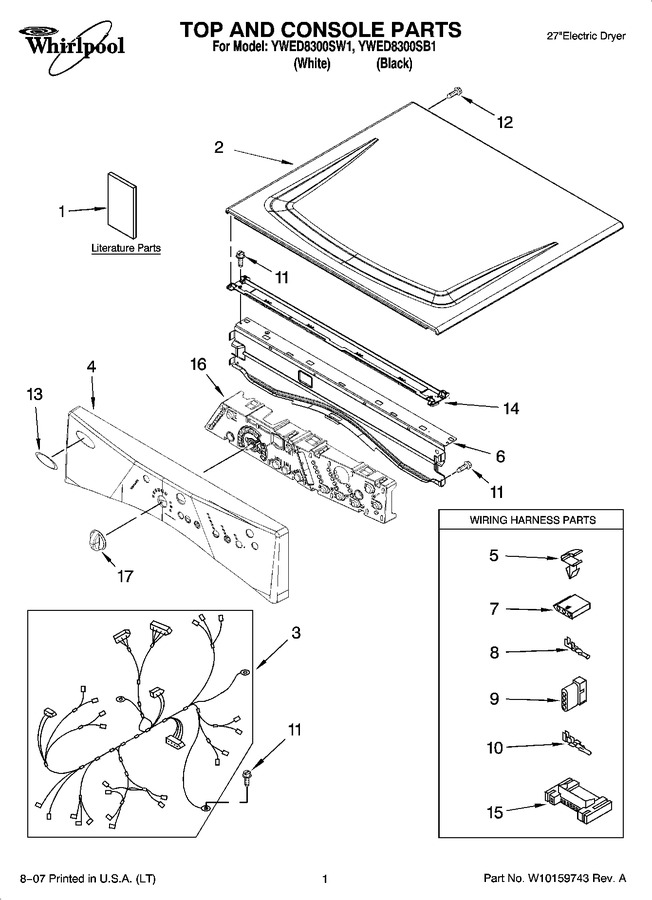

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8578901 | Use & Care Guide |
|
- | |||||
| 1 | 8578834 | Tech Sheet |
|
- | |||||
| 1 | 8578904 | Guide, Quick Start |
|
- | |||||
| 2 | W10129703 | Top (black) |
|
$ 122.37 | |||||
| 2 | WPW10336080 | Top (white) (Replaces: 8563730) |
|
$ 331.99 | |||||
| 3 | W10110974 | Harness, Main |
|
- | |||||
| 4 | W10099631 | Panel, Console (black) |
|
$ 203.60 | |||||
| 4 | W10099598 | Panel, Console (white) |
|
$ 173.13 | |||||
| 5 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 189.77 | |||||
| 7 | 353424 | Connector, Sensor |
|
$ 18.95 | |||||
| 8 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 9 | 3936144 | Plug, Terminal |
|
$ 21.22 | |||||
| 10 | 94613 | Terminal |
|
- | |||||
| 11 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | 3400238 | Screw, 2-28 X 1/2 |
|
$ 12.03 | |||||
| 13 | W10117943 | Badge, Assembly |
|
- | |||||
| 14 | WPW10266747 | Channel, Water (Replaces: 8574968) |
|
$ 73.96 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 16 | 8571955 | Assembly, User Interface |
|
$ 275.48 | |||||
| 17 | W10129067 | Knob, Assembly (black) |
|
$ 91.78 | |||||
| 17 | 8574963 | Knob, Assembly (white) |
|
$ 26.78 |
