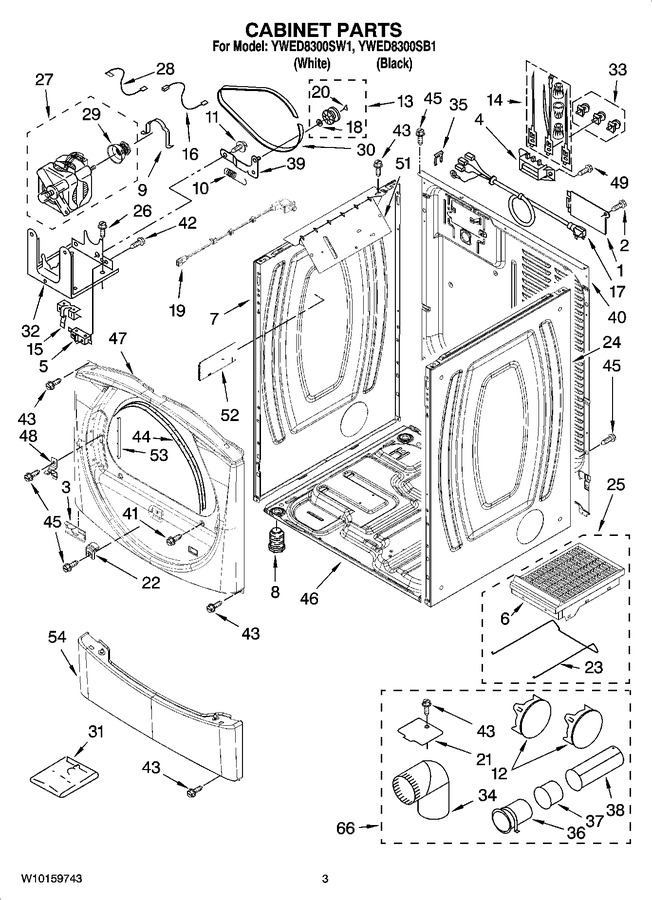

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10119283 | Cover, Terminal Block (Replaces: 8576583) |
|
$ 134.77 | |||||
| 2 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 3 | W11295573 | Clip, Toe Panel (Replaces: 8519459) |
|
$ 22.17 | |||||
| 4 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 5 | 279782 | Switch, Broken Belt (Replaces: 3394881) |
|
Immediately | $ 54.44 | ||||
| 6 | 8212450A | Dry Rack (top) (Replaces: 8521959) |
|
Immediately | $ 88.19 | ||||
| 7 | W10542714 | Panel, Side (l.h.) (white) (Replaces: 8565054) |
|
$ 350.58 | |||||
| 7 | W10112962 | Panel, Side (l.h.) (black) |
|
$ 114.65 | |||||
| 8 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | W10470674 | Plug, Multivent (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | 279318 | Terminal, Brass & Tinned (3) (includes Illus. 33) |
|
Immediately | $ 106.04 | ||||
| 15 | WP8066120 | Lever, Snap Switch (Replaces: 8066120) |
|
Immediately | $ 34.77 | ||||
| 16 | 3394081 | Wire, Belt Switch |
|
$ 37.57 | |||||
| 17 | W11095079 | Power Cord (Replaces: 8579325) |
|
Immediately | $ 138.24 | ||||
| 18 | WP233520 | Washer, Thrust (Replaces: 233520) |
|
Immediately | $ 8.36 | ||||
| 19 | 8574875 | Switch, Assembly Door |
|
$ 132.22 | |||||
| 20 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 7.55 | ||||
| 21 | WPW10354249 | Cover-plate (Replaces: 8066115) |
|
$ 9.41 | |||||
| 22 | 8580015 | Ramp, Door (white) |
|
$ 88.24 | |||||
| 22 | 8565083 | Ramp, Door (black) |
|
- | |||||
| 23 | 8521961 | Dry Rack Support |
|
- | |||||
| 24 | W10112963 | Panel, Side (r.h.) (black) |
|
- | |||||
| 24 | W10542714 | Panel, Side (r.h.) (white) (Replaces: 8565048) |
|
$ 350.58 | |||||
| 25 | 8212450A | Dry Rack Assembly (Replaces: 8563738) |
|
Immediately | $ 88.19 | ||||
| 26 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 27 | 279787 | Motor Assembly 60 Hz. (Replaces: 8538263) |
|
Immediately | $ 235.65 | ||||
| 28 | 3398948 | Wire, Jumper (broken Belt Switch) |
|
$ 64.66 | |||||
| 29 | W10837625 | Pulley, 60 Hz. (Replaces: 8578220) |
|
Immediately | $ 12.77 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 31 | 8572546 | Kit, Stack Assembly |
|
Immediately | $ 84.63 | ||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 140.27 | |||||
| 33 | 279393 | Terminal Block Screw Kit (for Terminal Block) |
|
Immediately | $ 55.66 | ||||
| 34 | WPW10416072 | 4`` - 90 Elbow (Replaces: 49026) |
|
$ 28.16 | |||||
| 35 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.77 | ||||
| 36 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 8563747) |
|
$ 95.95 | |||||
| 37 | WPW10331278 | Exhaust Pipe (short) (Replaces: 8563750) |
|
$ 82.90 | |||||
| 38 | WP8563749 | Exhaust Pipe (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| 39 | W10837240 | Idler Bracket (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 40 | 8565059 | Panel, Rear |
|
$ 244.90 | |||||
| 41 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 42 | WP98129 | Screw, 6/20 X 1 1/16 (Replaces: 98129) |
|
$ 8.18 | |||||
| 43 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 46 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 365.36 | |||||
| 47 | W10129648 | Front Panel (includes Illus. 44) (black) |
|
- | |||||
| 47 | 8580257 | Front Panel (includes Illus. 44) (white) |
|
$ 124.76 | |||||
| 48 | WP8565122 | Strike, Door (Replaces: 8565122) |
|
Immediately | $ 8.65 | ||||
| 49 | W10850756 | Screw, Ground (Replaces: 8533974) |
|
$ 8.20 | |||||
| 51 | WP8563727 | Bracket, Control (Replaces: 8563727) |
|
$ 179.69 | |||||
| 52 | W10111606 | Control Board |
|
$ 302.46 | |||||
| 53 | 8565043 | Plug, Front Panel |
|
$ 97.29 | |||||
| 54 | WP8540621 | Panel, Toe (white) (Replaces: 8540621) |
|
$ 189.38 | |||||
| 54 | W10112964 | Panel, Toe (black) |
|
$ 63.06 | |||||
| 66 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (black) (Replaces: 279820) |
|
Immediately | $ 76.65 | ||||
| 66 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) White (Replaces: 279818) |
|
Immediately | $ 76.65 |
