01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts, Optional Parts (not Included)

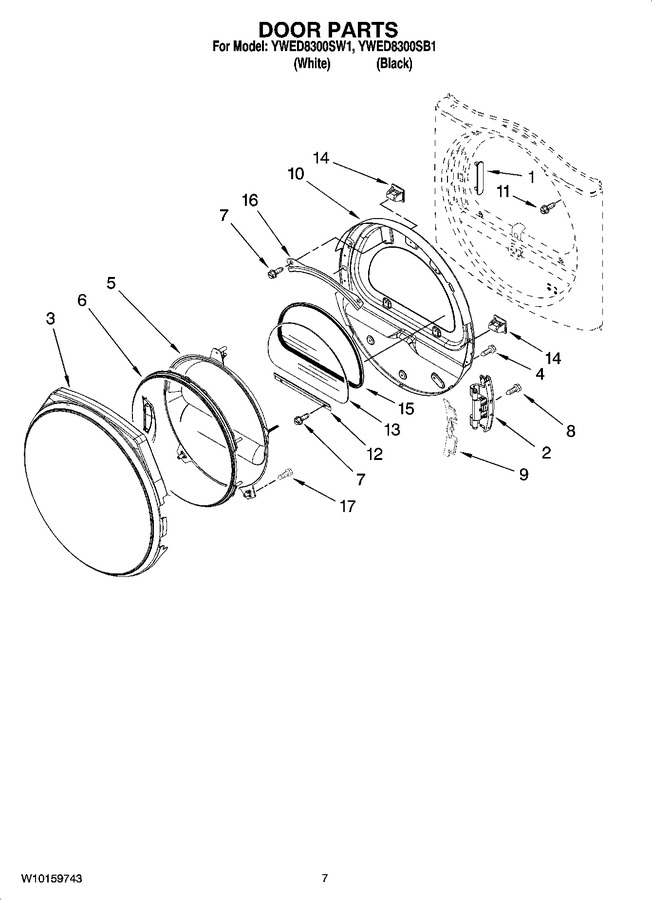

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8565119		Plug Strip				$ 98.32
2	WPW10304672		Door, Hinge Assembly   (Replaces: 8578887)			Immediately	$ 232.48
3	8571836		Door Ring (outer) (white)				$ 46.53
3	W10129706		Door Ring (outer) (black)				$ 95.37
4	W11116979		Screw   (Replaces: 8534044)				$ 13.76
5	W10129704		Door, Intermediate (gray)				$ 57.95
5	W10108900		Door Intermediate (white)				$ 140.84
6	W10044180		Door Assembly (outer)				$ 222.25
7	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 8.52
8	W10017850		Screw, 10-24 X .455		Appelez-nous	-
9	W10129722		Cover, Hinge (black)		Appelez-nous	-
9	8571839		Cover, Hinge (white)				$ 35.29
10	WPW10164062		Door Assembly (inner) (includes Illus. 1 & 14)   (Replaces: 8578933)				$ 354.07
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 8.48
12	W10822054		Retainer (lower)   (Replaces: 8519354)			Immediately	$ 18.01
13	WPW10286878		Window   (Replaces: 8565117)				$ 274.76
14	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.89
15	W11706993		Seal, Window   (Replaces: 8579663)				$ 28.22
16	8519356		Retainer (upper)		Appelez-nous	-
17	WP8534022		Screw   (Replaces: 8534022)				$ 8.37
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	4392067		Kit, Dryer Repair   (Replaces: 80047)			Immediately	$ 62.25
	72302		Paint, Touch-up (1/2oz.) (black)		Appelez-nous	-
	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 12.34
	8529894		Kit, Hold Down		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	786020		Paint, Pressurized Spray (12 Oz.) (black)		Appelez-nous	-
