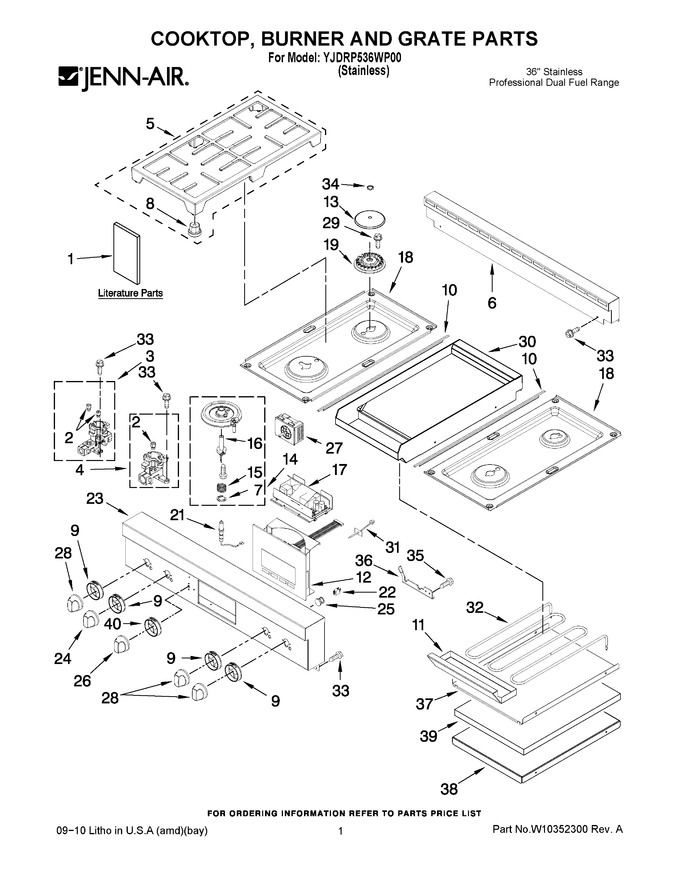

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Chassis Parts


04 - Venting Parts


05 - Oven Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10294839		Tech Sheet (english)		Appelez-nous	-
1	W10295367		Use & Care Guide		Appelez-nous	-
1	W10294843		Tech Sheet (french)		Appelez-nous	-
1	W10145393		Installation Instructions		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10075750		Instr, Installer		Appelez-nous	-
2	W10160179		Orifice (lf)				$ 75.77
2	W10160185		Orifice (l)				$ 73.54
2	W10160232		Orifice (lr), (rf)				$ 45.77
3	WPW10160187		Orifice Holder (lf)   (Replaces: W10160187)				$ 81.57
4	W10160234		Orifice Holder (lr), (rf)				$ 51.39
4	W10282659		Orifice Holder (rr)				$ 40.50
5	W11344501		Grate, Burner   (Replaces: W10276551)			Immediately	$ 218.28
6	W10269217		Trim, Island				$ 308.49
7	W10160825		Clip, Electrode				$ 52.85
8	W10185266		Pad, Grate   (Replaces: 8286695)			Immediately	$ 15.47
9	W10276494		Bezel				$ 80.42
10	W10291193		L-strip		Appelez-nous	-
11	W10276497		Drip, Tray Griddle				$ 404.03
12	W10344181		Assembly, Keypad		Appelez-nous	-
13	WPW10115952		Cap, Burner (lf)   (Replaces: W10115952)				$ 119.01
13	WP8286816		Cap, Burner (rr)   (Replaces: 8286816)				$ 110.74
13	WPW10160229		Cap, Burner (lr), (rf)   (Replaces: W10160229)			Immediately	$ 114.80
14	WPW10320937		Base, Burner (lf)   (Replaces: W10320937)				$ 157.22
14	W10189082		Base, Burner (lr), (rf)		Appelez-nous	-
15	W10160826		Spring, Electrode (lf), (lr), (rf)		Appelez-nous	-
15	8286863		Spring, Electrode (rr)				$ 76.92
16	W10250406		Electrode (lf)				$ 30.27
16	WPW10160235		Electrode (lr), (rf)   (Replaces: W10160235)				$ 42.08
17	WPW10145531		Assembly, Power Supply   (Replaces: W10145531)			Immediately	$ 311.25
18	W10282192		Cooktop (right)				$ 349.88
18	W10189104		Cooktop (left)				$ 146.58
19	WPW10282515		Burner Head (rr)   (Replaces: W10282515)			Immediately	$ 149.87
19	W10250458		Burner Head (lr), (rf)		Appelez-nous	-
19	WPW10250459		Burner Head (lf)   (Replaces: W10250459)			Immediately	$ 154.23
21	W10146042		Electrode, Wire				$ 19.74
22	W10116151		Light, Indicator Housing				$ 79.16
23	W11444937		Panel, Control   (Replaces: W10295786)				$ 748.31
24	W10145568		Knob, Control Lf				$ 52.92
25	W10294500		Lens, Indicator				$ 7.69
26	W10145566		Knob, Griddle			Immediately	$ 51.66
27	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 351.97
28	W10145454		Knob, Control (lr, Rf) Lr, Rf				$ 46.94
29	W11404293		Screw   (Replaces: W10078270)			Immediately	$ 14.74
30	W10625221		Griddle, Module   (Replaces: W10276498)				$ 1,457.32
31	W10319835		Sensor				$ 239.28
32	W10138296		Element, Griddle		Appelez-nous	-
33	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
34	W10115953		Nut, Burner				$ 9.78
35	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
36	W10130760		Bracket,console (left)				$ 75.94
36	W10130759		Bracket,console (right)				$ 75.94
37	W10145620		Tray-element, Griddle		Appelez-nous	-
38	W10246074		Tray-insulation, Griddle		Appelez-nous	-
39	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
40	W10145453		Bezel, Griddle				$ 80.42
