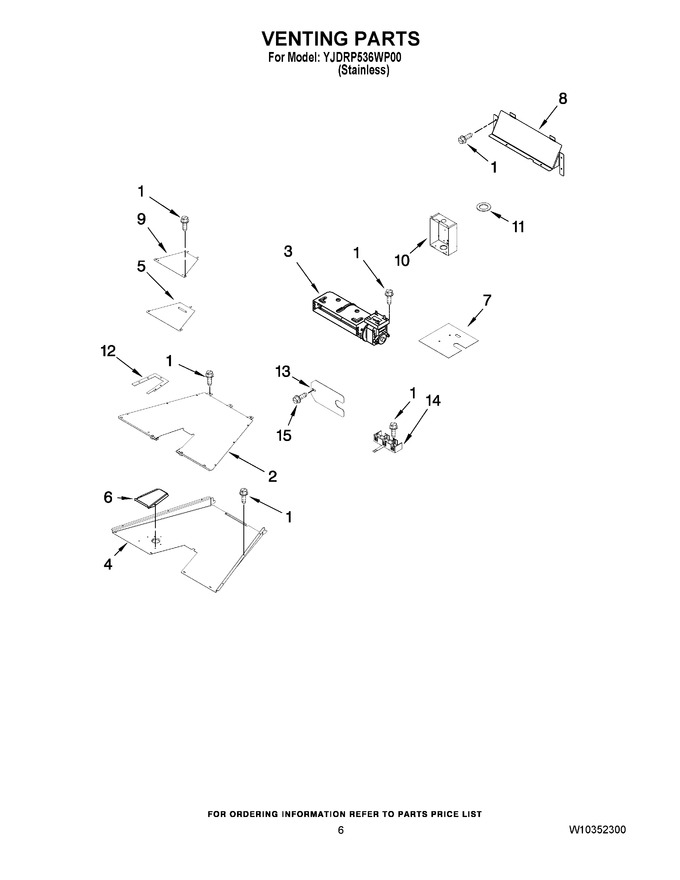

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 8.76 | ||||
| 2 | W10160896 | Vent, Cooling Top |
|
- | |||||
| 3 | WPW10245511 | Blower (Replaces: W10245511) |
|
Immediately | $ 306.02 | ||||
| 4 | W10246078 | Vent, Cooling Bottom |
|
- | |||||
| 5 | W10160875 | Plate, Latch |
|
- | |||||
| 6 | W10246075 | Slope, Exhaust Vent |
|
- | |||||
| 7 | 9759721 | Insulator, Terminal Box |
|
- | |||||
| 8 | W10160844 | Bracket, Blower |
|
- | |||||
| 9 | W10160858 | Cover, Latch |
|
$ 76.94 | |||||
| 10 | W10115858 | Box, Terminal |
|
$ 122.00 | |||||
| 11 | W10270396 | Seal, Chimney |
|
- | |||||
| 12 | W10270397 | Seal, Vent Slope |
|
- | |||||
| 13 | W10145382 | Cover, Channel |
|
- | |||||
| 14 | WP9761958 | Block, Terminal (Replaces: 9761958) |
|
Immediately | $ 47.96 | ||||
| 15 | WP3400805 | Screw (Replaces: 3400805) |
|
$ 7.55 |
