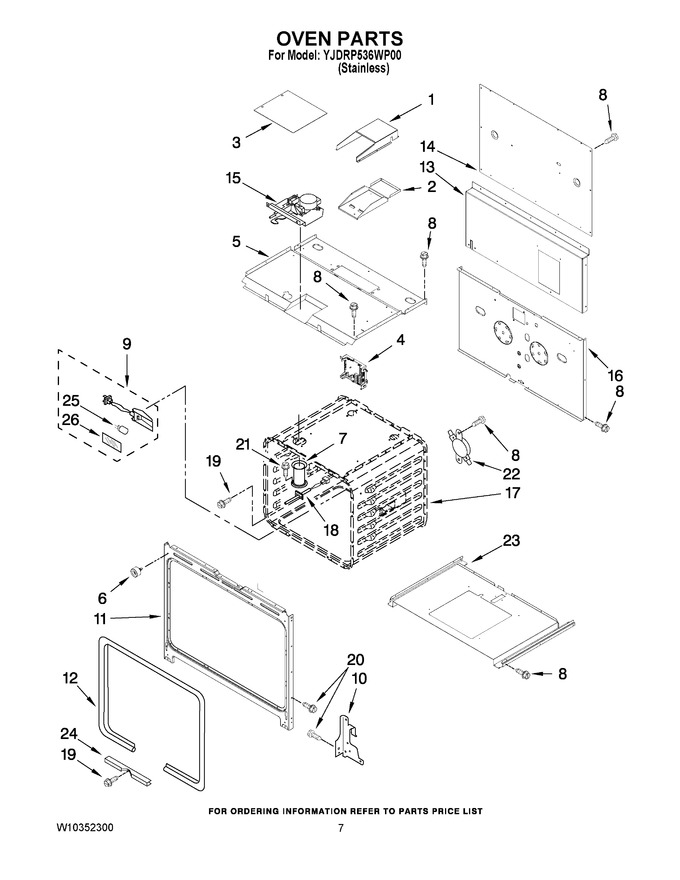

05 - Oven Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10235557		Drawer		Appelez-nous	-
2	W10249337		Support		Appelez-nous	-
3	W10239444		Seal		Appelez-nous	-
4	W10876298		Control   (Replaces: W10146048)			Immediately	$ 505.11
5	W10267896		Top, Chassis		Appelez-nous	-
6	W10105790		Assembly, Bumper				$ 7.41
7	W10288061		Tube, Vent				$ 115.94
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WPW10307114		Oven Light Assy   (Replaces: W10307114)			Immediately	$ 116.01
10	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
10	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
11	W10160867		Frame, Front				$ 212.10
12	W11676901		Gasket, Oven   (Replaces: W10160889)				$ 75.74
13	W10145391		Panel, Back Bottom		Appelez-nous	-
14	W10269208		Panel, Back Top		Appelez-nous	-
15	W11029221		Latch, Motorized   (Replaces: W10195935)			Immediately	$ 327.65
16	W10324087		Back, Chassis		Appelez-nous	-
17	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
18	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
19	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
20	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
21	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
22	WP4449751		Thermostat   (Replaces: 4449751)			Immediately	$ 111.84
23	W10235536		Bottom, Chassis		Appelez-nous	-
24	W11368870		Retainer, Gasket   (Replaces: W10157511)				$ 24.91
25	WPW10169757		Bulb   (Replaces: W10169757)			Immediately	$ 47.38
26	W10169756		Lens				$ 42.19
NI	W11688743		Insulation, Wrap   (Replaces: W10282811)		Appelez-nous	-
NI	W11688806		Insulation, Back   (Replaces: W10282815)		Appelez-nous	-
