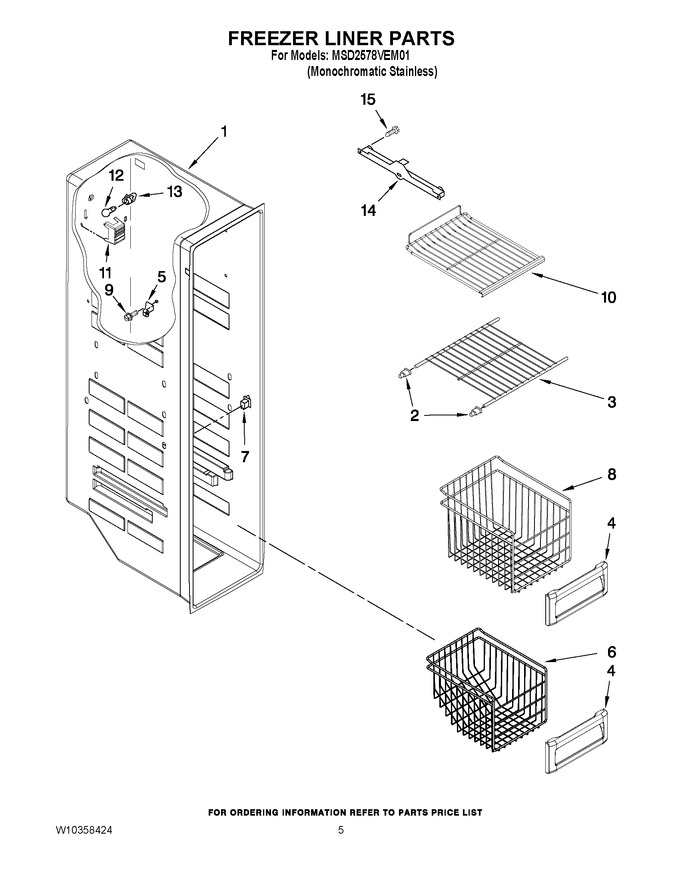

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	WPW10130299		Cup, Shelf Mounting (12)   (Replaces: W10130299)			Immediately	$ 14.70
3	W10318946		Shelf, Wire				$ 37.05
4	W10153254		Front, Basket		Appelez-nous	-
5	2196206		Support, Stud (4)		Appelez-nous	-
6	W10153523		Basket, Wire Lower		Appelez-nous	-
7	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
8	W10153519		Basket, Wire Upper		Appelez-nous	-
9	W10142289		Screw   (Replaces: 3400893)				$ 9.61
10	2211746K		Shelf, Wire Slide-out		Appelez-nous	-
11	W11298978		Light Lens   (Replaces: 2212340)				$ 98.57
12	W11679940		Light Bulb   (Replaces: W10311505)			Immediately	$ 11.30
13	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
14	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
14	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
15	718257		Screw (4)   (Replaces: 489100)		Appelez-nous	-
