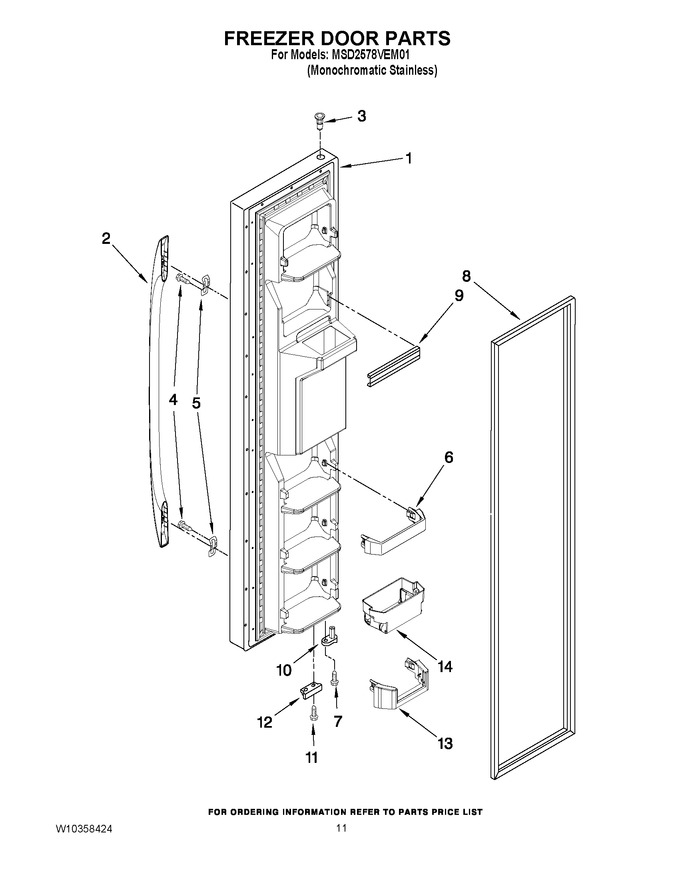

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10313200		Freezer Door (includes Item 8 And Dispenser Front Parts) (mono Stainless)		Appelez-nous	-
2	WPW10170739		Handle   (Replaces: W10170739)				$ 363.92
3	WP2182181		Thimble-top   (Replaces: 2200087)				$ 8.15
4	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 9.65
5	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
6	WP2171157		Trivet   (Replaces: 2171157)				$ 63.70
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	W10136735		Door Gasket, Magnetic   (Replaces: 2327164)				$ 254.84
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307490)			Immediately	$ 24.27
10	2323535		Door Closer, Upper Cam				$ 33.97
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2323534B		Bracket, Door Stop		Appelez-nous	-
13	2223334		Trivet, Tilt-out				$ 25.46
14	W10142356		Bin, Tilt-out		Appelez-nous	-
