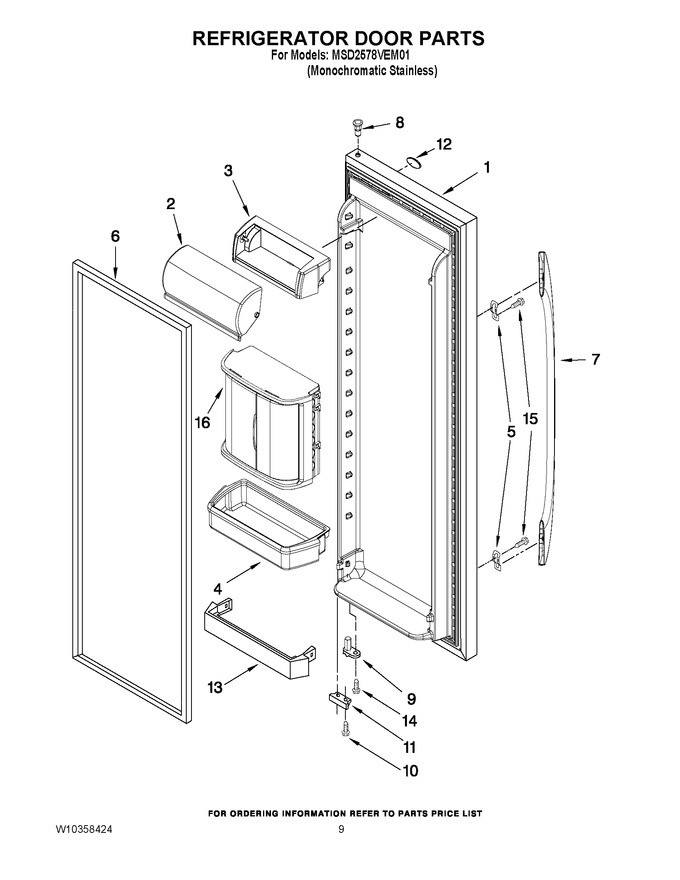

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10313190		Refrigerator Door (includes Item 6) (mono Stainless)		Appelez-nous	-
2	W10252009		Door, Dairy		Appelez-nous	-
3	W10128148		Dairy Bin		Appelez-nous	-
4	W10252006		Door Bin				$ 34.05
5	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
6	WPW10136734		Door Gasket, Magnetic   (Replaces: 2327163)				$ 335.39
7	WPW10170739		Handle   (Replaces: W10170739)				$ 363.92
8	WP2182181		Thimble-top   (Replaces: 2200087)				$ 8.15
9	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
10	WP489483		Screw   (Replaces: 489420)				$ 11.41
11	WP2206629B		Bracket, Door Stop   (Replaces: 2206629B)				$ 42.79
12	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
13	WP2309941		Trivet, Shelf   (Replaces: 2309941)			Immediately	$ 76.32
14	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
15	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 9.65
16	W10252010		Beverage Chiller				$ 246.57
