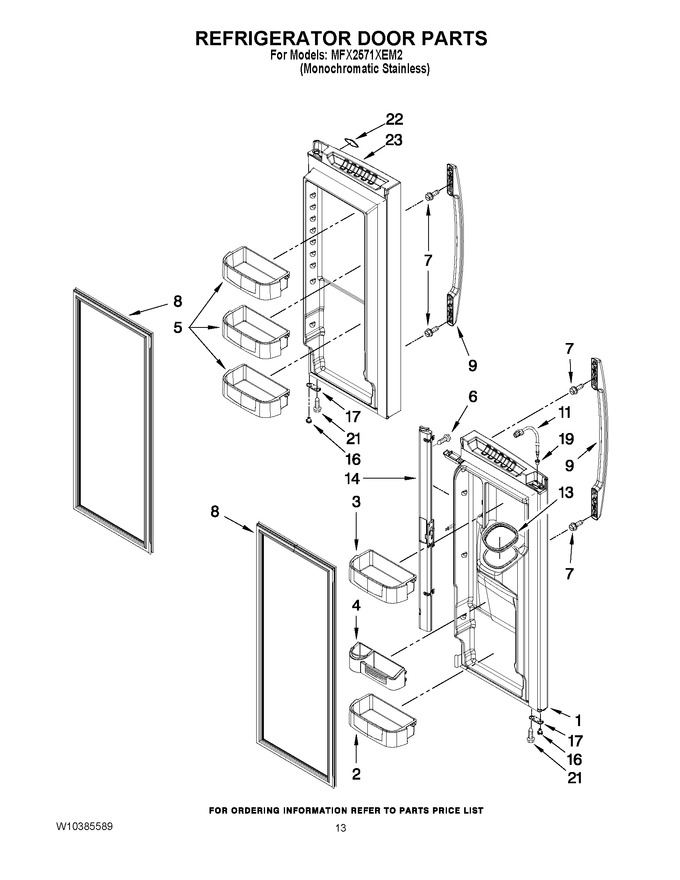

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107301S		Door, Left (mono Stainless)		Appelez-nous	-
2	W10297151		Bucket-lower-lh		Appelez-nous	-
3	W10290553		Bucket-upper-lh		Appelez-nous	-
4	W10290555		Bucket-wine Bottle				$ 34.29
5	WP12840004		Bucket, Gallon   (Replaces: 12840004)				$ 90.37
6	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.95
7	WP12992902		Screw, Handle   (Replaces: 12992902)				$ 11.07
8	W10830274		Gasket, Door (apollo Grey)   (Replaces: W10294127)			Immediately	$ 205.74
9	W10252288A		Door Handle (stainless)   (Replaces: W10252288)				$ 123.68
11	W10296451		Waterline, Door				$ 53.54
13	WPW10287601		Seal, Ice Chute   (Replaces: W10287601)			Immediately	$ 31.20
14	WPW10311757		Mullion, Door (apollo Grey)   (Replaces: W10311757)				$ 134.42
16	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
17	W11703060		Stop, Door (apollo Grey)   (Replaces: 12968202AP)				$ 14.72
19	12996601		Clip, Bushing Wire (left Door)				$ 10.05
21	WP98165		Screw   (Replaces: 12990521)				$ 8.00
22	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 67.14
23	13107302S		Door, Right (mono Stainless)		Appelez-nous	-
