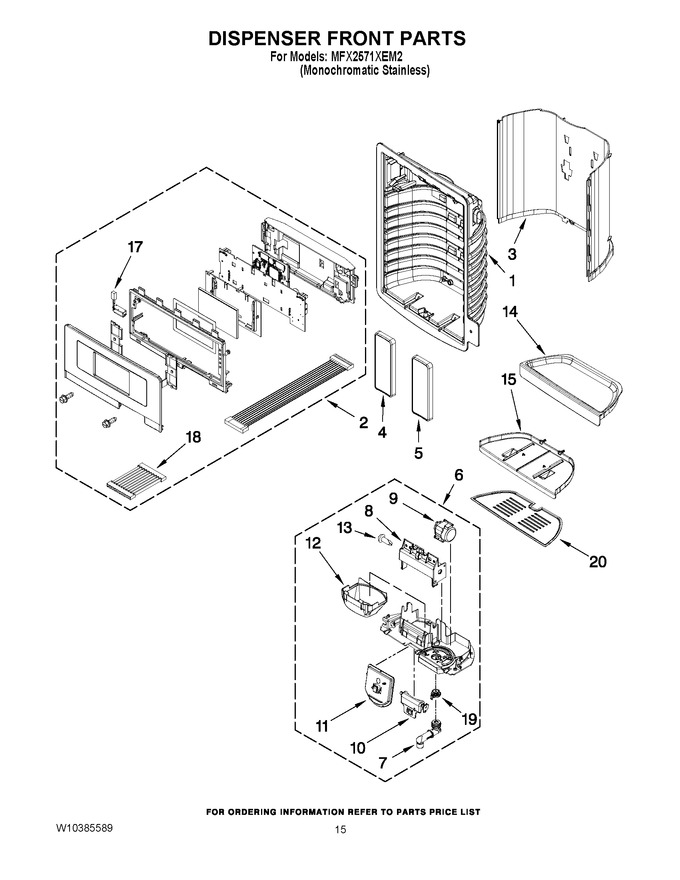

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10333275 | U I Assemly (stainless) |
|
$ 635.49 | |||||
| 3 | W11045978 | False Wall Disp. (nickel) (Replaces: W10299897) |
|
$ 86.03 | |||||
| 4 | W10334789 | Pad, Ice (nickel) |
|
- | |||||
| 5 | W10334813 | Pad, Water (nickel) |
|
$ 42.69 | |||||
| 6 | W10353562 | Separator Assy. (stainless) |
|
- | |||||
| 7 | W11227371 | Spigot Body Assy. (Replaces: 2316647) |
|
$ 129.89 | |||||
| 8 | W10174827 | Bracket, Ice Door |
|
$ 72.78 | |||||
| 9 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 102.48 | ||||
| 10 | W10499850 | Support, Ice Door (Replaces: W10174809) |
|
$ 99.69 | |||||
| 11 | W10346235 | Door, Ice (Replaces: W10174811) |
|
$ 162.21 | |||||
| 12 | W10499850 | Guide, Ice (Replaces: W10174808) |
|
$ 99.69 | |||||
| 13 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.49 | |||||
| 14 | WPW10305897 | Tray-dispenser (stainless) (Replaces: W10305897) |
|
$ 80.77 | |||||
| 15 | WPW10267863 | Slide-tray Disp. (apollo Grey) (Replaces: W10267863) |
|
$ 69.73 | |||||
| 17 | W11290115 | Led Assembly (Replaces: W10238083) |
|
$ 80.43 | |||||
| 18 | W10193350 | Harness, Jumper |
|
$ 56.57 | |||||
| 19 | 2305348 | Damper-spigot |
|
$ 30.84 | |||||
| 20 | W10215957 | Grate, Drip |
|
$ 52.76 |
