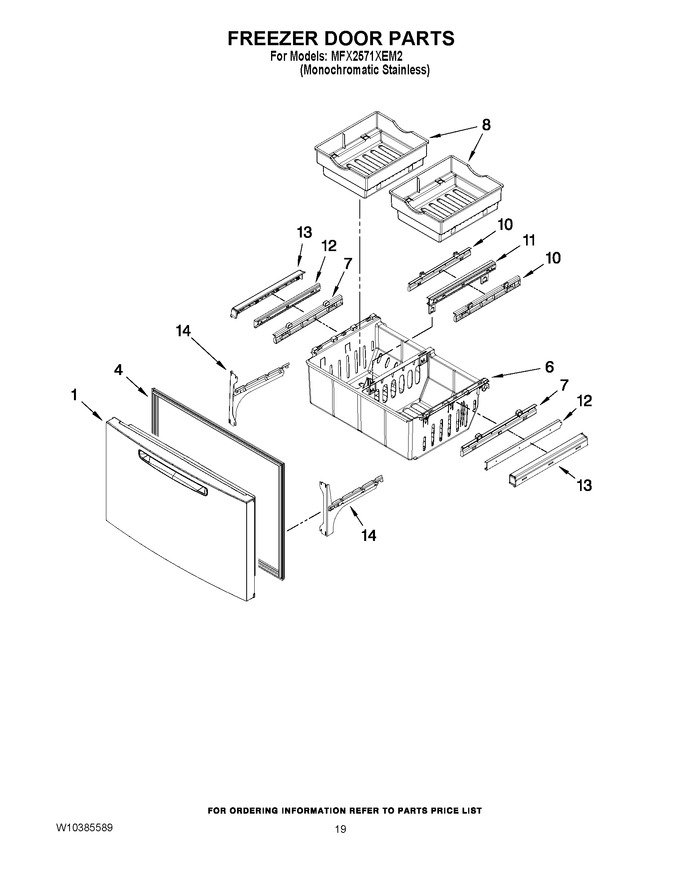

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107101S		Freezer Door (mono Stainless)		Appelez-nous	-
4	WPW10714545		Gasket, Door (apollo Grey)   (Replaces: W10164045)				$ 308.19
6	12924801SP		Bin, Lower		Appelez-nous	-
7	W10166742		Adapter, Bin (outer)   (Replaces: 12925403SP)				$ 93.45
8	WP12924903		Bin, Upper   (Replaces: 12924903)				$ 126.00
10	12925404SP		Adapter, Bin (inner)				$ 43.16
11	WPW10235357		Bracket/glide Assembly   (Replaces: W10235357)			Immediately	$ 315.22
12	WPW10235367		Glide, Upper   (Replaces: W10235367)				$ 298.50
13	W10826788		Retainer, Glide (left)   (Replaces: 12925501SP)				$ 54.76
13	WP67006368		Retainer, Glide (right)   (Replaces: 12925502SP)				$ 183.71
14	WPW10330993		Bracket, Door Slide (right)   (Replaces: W10122148)				$ 158.18
14	WPW10330991		Bracket, Door Slide (left)   (Replaces: W10122147)				$ 156.49
