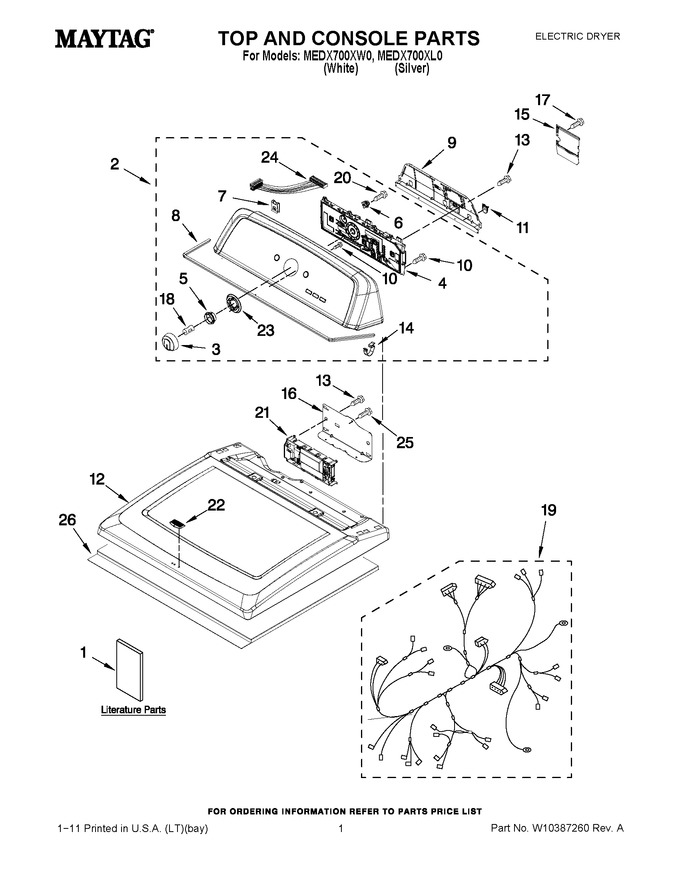

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10096989 | Guide, Use & Care |
|
- | |||||
| 1 | W10115226 | Installation Instructions |
|
- | |||||
| 1 | W10097019 | Tech Sheet |
|
- | |||||
| 2 | WPW10293249 | Console Assembly (complete) (silver) (Replaces: W10293249) |
|
$ 529.90 | |||||
| 2 | WPW10293249 | Console Assembly (complete) (white) (Replaces: W10293248) |
|
$ 529.90 | |||||
| 3 | WPW10251381 | Knob Assembly (include No. 18) (white) (Replaces: W10251381) |
|
$ 58.63 | |||||
| 3 | WPW10251384 | Knob Assembly (include No. 18) (silver) (Replaces: W10251384) |
|
$ 64.58 | |||||
| 4 | WPW10272644 | User Interface Assembly (Replaces: W10272644) |
|
$ 313.89 | |||||
| 5 | W10326923 | Spacer, Knob |
|
- | |||||
| 6 | W10274524 | Tensioner-fascia |
|
- | |||||
| 7 | W11213336 | Nut, 8-18 U-type (Replaces: W10298336) |
|
$ 8.13 | |||||
| 8 | W10280079 | Seal, Console |
|
- | |||||
| 9 | W10096969 | Panel, Rear |
|
$ 197.80 | |||||
| 10 | 3196172 | Screw, 8-18 X 3/8 |
|
Immediately | $ 13.47 | ||||
| 11 | W10279552 | Plug-upper (rear Panel) |
|
- | |||||
| 12 | W10268731 | Top (silver) |
|
$ 132.83 | |||||
| 12 | WPW10268730 | Top (white) (Replaces: W10268730) |
|
$ 345.86 | |||||
| 13 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 14 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 15 | WPW10119283 | Cover, Terminal Block (Replaces: W10286180) |
|
$ 134.77 | |||||
| 16 | W10271580 | Bracket, Motor Control |
|
- | |||||
| 17 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 18 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 19 | W10287252 | Harness, Electric |
|
- | |||||
| 20 | W10853898 | Screw, 8-16 X 1/2 (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 21 | WPW10214009 | Ccu-control (Replaces: W10296532) |
|
$ 395.99 | |||||
| 22 | W10492808 | Badge, Maytag (Replaces: W10323735) |
|
$ 59.82 | |||||
| 23 | W10305134 | Bezel, Cycle Trim |
|
$ 26.37 | |||||
| 24 | W10285494 | Harness, User Interface |
|
- | |||||
| 25 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 26 | W10123956 | Sound, Absorber |
|
- |
