SELECT A DIAGRAM

01 - Top And Console Parts

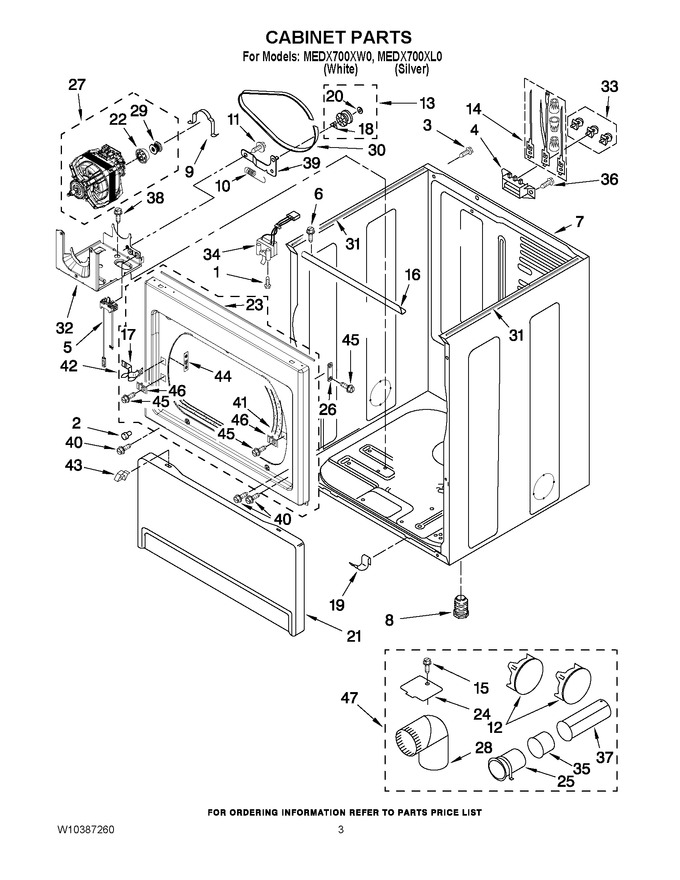

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 8.57
2	693152		Bumper				$ 11.51
3	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
5	WPW10411937		Switch, Broken Belt   (Replaces: W10246525)			Immediately	$ 36.06
6	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
7	W11417441		Cabinet (white)   (Replaces: 8310656)				$ 440.17
7	W10292891		Cabinet (silver)		Appelez-nous	-
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent (white)   (Replaces: 49252)				$ 75.58
12	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10151499)				$ 75.58
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	279318		Terminal, Brass & Tinned (3) (includes Illus. 33)			Immediately	$ 106.04
15	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
16	W10236068		Bracket, Cabinet				$ 24.47
17	W11429589		Strike, Door   (Replaces: 3403431)			Immediately	$ 20.99
18	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
19	WPW10291934		Clip (2)   (Replaces: W10291934)				$ 8.14
20	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.55
21	WP3406797		Toe Panel (white)   (Replaces: 697215)				$ 250.25
21	W10096974		Toe Panel (silver)				$ 91.65
22	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
23	W10312811		Foam Seal				$ 67.73
24	WPW10354249		Cover-plate   (Replaces: 3394331)				$ 9.41
25	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 95.95
26	W10304147		Plug, Hinge Screw (silver)		Appelez-nous	-
26	W10191265		Plug, Hinge Screw (white)				$ 46.49
27	WPW10508324		Motor Assembly 60 Hz.   (Replaces: W10281085)			Immediately	$ 342.91
28	WPW10416072		4`` - 90° Elbow   (Replaces: 49026)				$ 28.16
29	W10837625		Pulley, Motor   (Replaces: 3389729)			Immediately	$ 12.77
30	WPW10112954		Belt, Drive   (Replaces: W10112954)			Immediately	$ 105.32
31	W10336128		Seal, Spill Guard				$ 15.08
32	W11481730		Bracket, Motor   (Replaces: W10242878)			Immediately	$ 94.84
33	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 55.66
34	WP3406107		Door Switch Assembly   (Replaces: 3406107)			Immediately	$ 31.20
35	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 82.90
36	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
37	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 93.24
38	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
40	WP308685		Screw, 10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
41	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
42	W10362984		Upper Front Panel (silver)				$ 110.13
42	W10362983		Upper Front Panel (white)				$ 286.48
43	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
44	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 11.67
45	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 8.11
46	WP3403630		Plug, Strike (white)   (Replaces: 3403630)				$ 7.91
46	W10097055		Plug, Strike (silver)		Appelez-nous	-
NI	WPW10131132		Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey)   (Replaces: W10331132)				$ 75.81
NI	49621		Foot - Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55

    View Diagram in Separate Window       Print Part List
