01 - Top And Console Parts
02 - Cabinet Parts

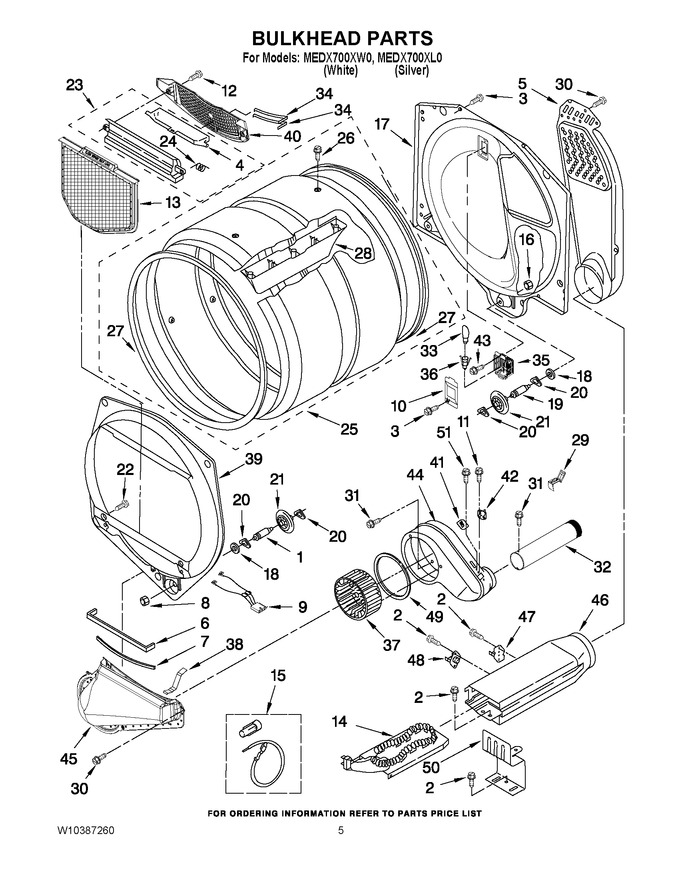

03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 2 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 3 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 4 | W11222846 | Door, Lint Screen (Replaces: W10153413) |
|
Immediately | $ 213.91 | ||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 327.31 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 8.37 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 8.37 | ||||
| 8 | W11812294 | Nut,3/8 X 16(r.h.) (Replaces: 3934666) |
|
$ 12.77 | |||||
| 9 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.84 | ||||
| 10 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 32.64 | |||||
| 11 | WP693995 | Screw, 8-18 X 5/16 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 12 | WP308685 | Screw, 8-18 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 13 | W10120998 | Lint, Screen (Replaces: W10049370) |
|
$ 67.16 | |||||
| 14 | WP3387747 | Heater Element (Replaces: 3387747) |
|
Immediately | $ 84.64 | ||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 17 | W11299301 | Bulkhead, Rear (Replaces: 8520836) |
|
$ 260.14 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 22 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 23 | W11219327 | Outlet Housing Assembly (Replaces: W10153423) |
|
$ 95.07 | |||||
| 24 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 93.47 | |||||
| 25 | W10545923 | Complete Drum Assembly (Replaces: 8318215) |
|
$ 458.60 | |||||
| 26 | W10853898 | Screw, 11-16 X 1/2 (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10166807) |
|
Immediately | $ 70.82 | ||||
| 28 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 95.57 | ||||
| 29 | W11684573 | Clip, Exhaust (Replaces: 8572105) |
|
$ 8.17 | |||||
| 30 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 31 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 8.25 | |||||
| 32 | 279936 | Exhaust Pipe (Replaces: 8066224) |
|
$ 154.18 | |||||
| 33 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 14.85 | ||||
| 34 | WP3387223 | Electrode, Sensor (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 35 | 8578825 | Bracket,drum Light |
|
$ 21.92 | |||||
| 36 | W11222979 | Socket Assembly (Replaces: W10214261) |
|
Immediately | $ 118.79 | ||||
| 37 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 59.07 | ||||
| 38 | WP8066208 | Clip Spring (Replaces: 8066208) |
|
$ 8.83 | |||||
| 39 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 218.43 | |||||
| 40 | W11086603 | Grille, Outlet (Replaces: W10153412) |
|
Immediately | $ 36.90 | ||||
| 41 | WP3392519 | Thermal Fuse (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 42 | WP8577274 | Thermistor Dryer Exhaust (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 43 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 44 | W10888146 | Housing, Blower (Replaces: 8544362) |
|
$ 106.79 | |||||
| 45 | WPW10128606 | Lint Duct Assembly (Replaces: 8066168) |
|
$ 217.48 | |||||
| 46 | W10802681 | Heater Box (Replaces: 3392537) |
|
Immediately | $ 129.67 | ||||
| 47 | 279973 | Thermal Cut-off (includes Illus. 48) (Replaces: 8318314) |
|
Immediately | $ 75.60 | ||||
| 48 | WP3391914 | Thermostat-hl (295 / 215 Nc) (Replaces: 3391914) |
|
Immediately | $ 119.47 | ||||
| 49 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 8.27 | ||||
| 50 | 8066099 | Bracket, Heater Box |
|
$ 26.81 | |||||
| 51 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 8.57 |
