SELECT A DIAGRAM

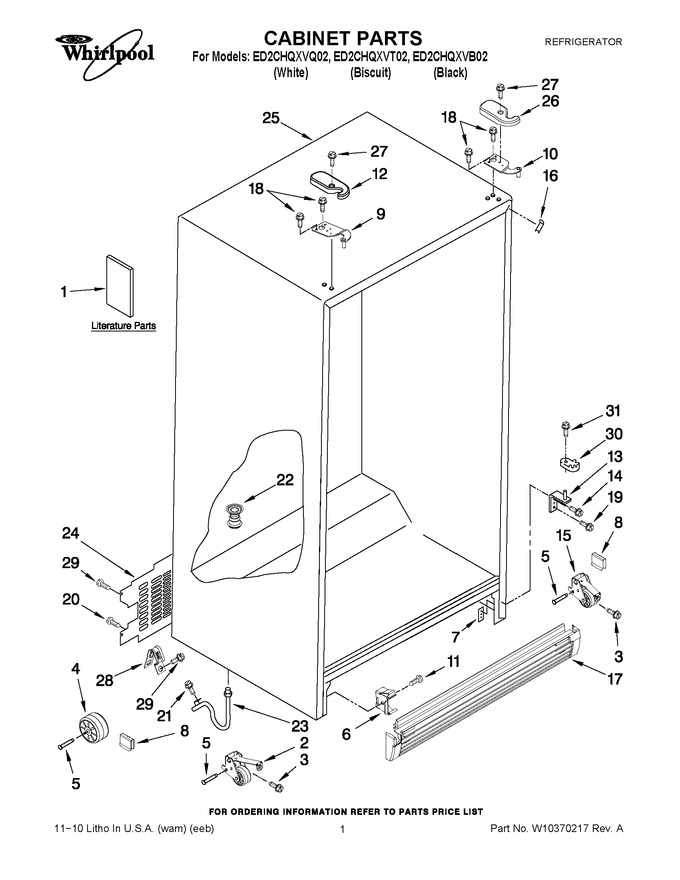

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10213155		Use & Care Guide		Appelez-nous	-
1	W10178765		Energy Label		Appelez-nous	-
1	2216001		Instruction Sheet, Door Removal		Appelez-nous	-
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10250286		Service & Wiring Sheet		Appelez-nous	-
2	WPW10304660		Front Roller, Left   (Replaces: W10304660)			Immediately	$ 70.38
3	WP489427		Screw (2)   (Replaces: 489427)				$ 7.47
4	WPW10475495		Roller, Rear   (Replaces: 2150304)			Immediately	$ 32.06
5	W11594405		Axle, Roller   (Replaces: 2262072)			Immediately	$ 18.21
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP2304249		Plate, Screw (2)   (Replaces: 2304249)				$ 14.23
8	WP2174706		Clip, Axle   (Replaces: 2174706)				$ 10.98
9	W10287685		Hinge Top, Fc				$ 63.39
10	W10287684		Hinge Top Rc				$ 46.69
11	WP489128		Screw   (Replaces: 488500)				$ 10.88
12	WP2203407B		Hinge Cover (biscuit)   (Replaces: 2203407B)				$ 19.52
12	WP2203407W		Hinge Cover (white)   (Replaces: 2203407W)				$ 20.75
12	2203407T		Hinge Cover (black)		Appelez-nous	-
13	W10251408		Hinge Bottom (2)				$ 59.74
14	WP489497		Screw (4)   (Replaces: 3400113)			Immediately	$ 29.09
15	WPW10304659		Front Roller, Right   (Replaces: W10304659)			Immediately	$ 68.52
16	W10283958		Filler, Wrapper (biscuit)				$ 24.41
16	WPW10283959		Filler Wrapper (white)   (Replaces: W10283959)				$ 7.82
16	W11252732		Filler, Wrapper (black)   (Replaces: W10283960)				$ 12.45
17	W11167901		Grille (white)   (Replaces: W10283945)				$ 111.20
17	W10283943		Grille (black)		Appelez-nous	-
17	W10283944		Grille (biscuit)				$ 93.30
18	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
19	W10856122		Screw (2)   (Replaces: 3400103)				$ 7.76
20	WP488488		Screw   (Replaces: 489290)				$ 7.68
21	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
22	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
23	W11512417		Extension Tube   (Replaces: W10153550)				$ 34.79
24	WP2188756		Cover, Unit   (Replaces: 2200455)				$ 141.67
25	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
26	WP2203408W		Hinge Cover (white)   (Replaces: 2203408W)				$ 20.97
26	WP2203408B		Hinge Cover (black)   (Replaces: 2203408B)				$ 18.63
26	2203408T		Hinge Cover (biscuit)		Appelez-nous	-
27	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
28	549193		Clamp, Service Cord				$ 13.39
29	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
30	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
31	WP489483		Screw (2)   (Replaces: 489483)				$ 10.87

    View Diagram in Separate Window       Print Part List
