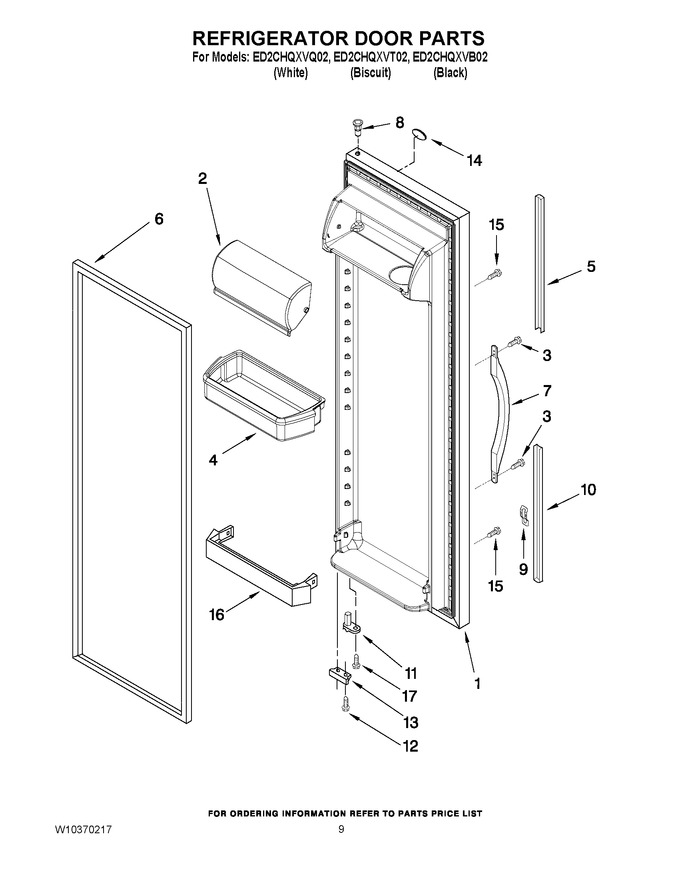

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309598W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	2309598T		Refrigerator Door (includes Item 6) (biscuit)		Appelez-nous	-
1	2309598B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
3	WP489491		Screw   (Replaces: 489491)				$ 6.95
4	WP2203828		Door Bin (3)   (Replaces: 2203828)				$ 95.52
5	2194706T		Extension, Top (biscuit)		Appelez-nous	-
5	2194706B		Extension, Top (black)				$ 44.29
5	2194706W		Extension, Top (white)				$ 44.81
6	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309600)				$ 317.32
6	2159081		Door Gasket, Magnetic (black)   (Replaces: 2309653)				$ 319.60
7	W10285542		Handle (includes No.3) (white)				$ 71.46
7	W10285541		Handle (includes No.3) (biscuit)				$ 68.60
7	W10285540		Handle (includes No.3) (black)				$ 71.85
8	WP2182181		Thimble-top   (Replaces: 2308091)				$ 7.76
9	WP2195327		Clip   (Replaces: 2195327)				$ 7.40
10	2194705W		Extension, Bottom (white)				$ 48.88
10	2194705B		Extension, Bottom (black)				$ 47.36
10	2194705T		Extension, Bottom (biscuit)				$ 47.92
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	W10185570		Bracket, Door Stop (chrome)				$ 11.59
13	W10185571		Bracket, Door Stop (black)		Appelez-nous	-
14	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
15	WP489491		Screw (4)   (Replaces: 489491)				$ 6.95
16	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 76.32
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
