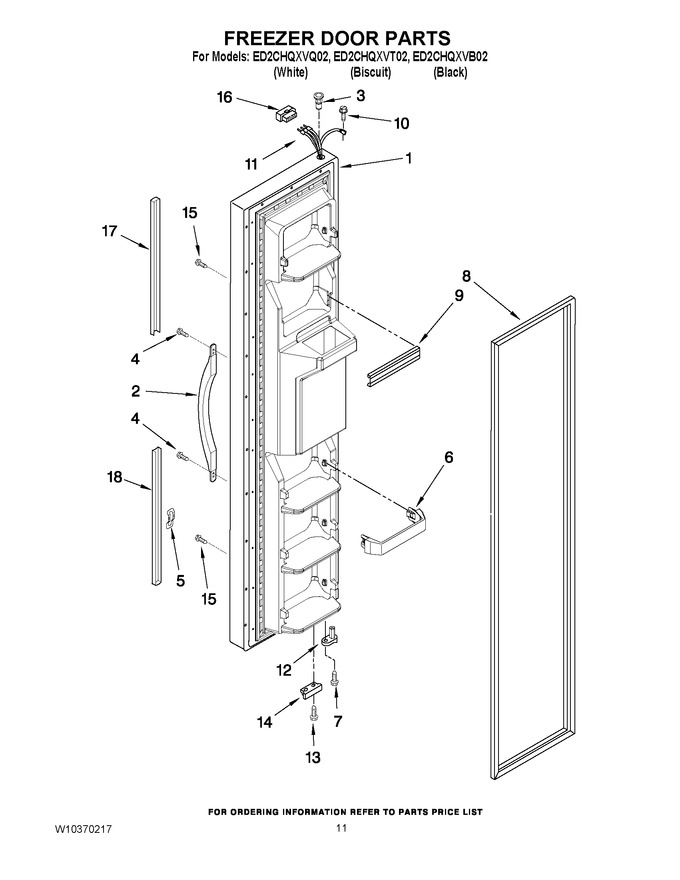

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10153757		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10153759		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	W10153758		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	W10285541		Handle (includes No.4) (biscuit)				$ 68.60
2	W10285542		Handle (includes No.4) (white)				$ 71.46
2	W10285540		Handle (includes No.4) (black)				$ 71.85
3	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	WP2195327		Clip   (Replaces: 2195327)				$ 7.40
6	WP2309717		Trivet (4)   (Replaces: 2309717)				$ 55.85
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2309654)				$ 310.39
8	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309604)				$ 308.19
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307489)			Immediately	$ 23.11
10	WP489128		Screw   (Replaces: 488500)				$ 10.88
11	2311642		Wire Harness				$ 217.92
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	W10185566		Bracket, Door Stop (chrome)		Appelez-nous	-
14	W10185567		Bracket, Door Stop (black)		Appelez-nous	-
15	WP489491		Screw (4)   (Replaces: 489491)				$ 6.95
16	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
17	2194706B		Extension, Top (black)				$ 44.29
17	2194706W		Extension, Top (white)				$ 44.81
17	2194706T		Extension, Top (biscuit)		Appelez-nous	-
18	2194705B		Extension, Bottom (black)				$ 47.36
18	2194705W		Extension, Bottom (white)				$ 48.88
18	2194705T		Extension, Bottom (biscuit)				$ 47.92
