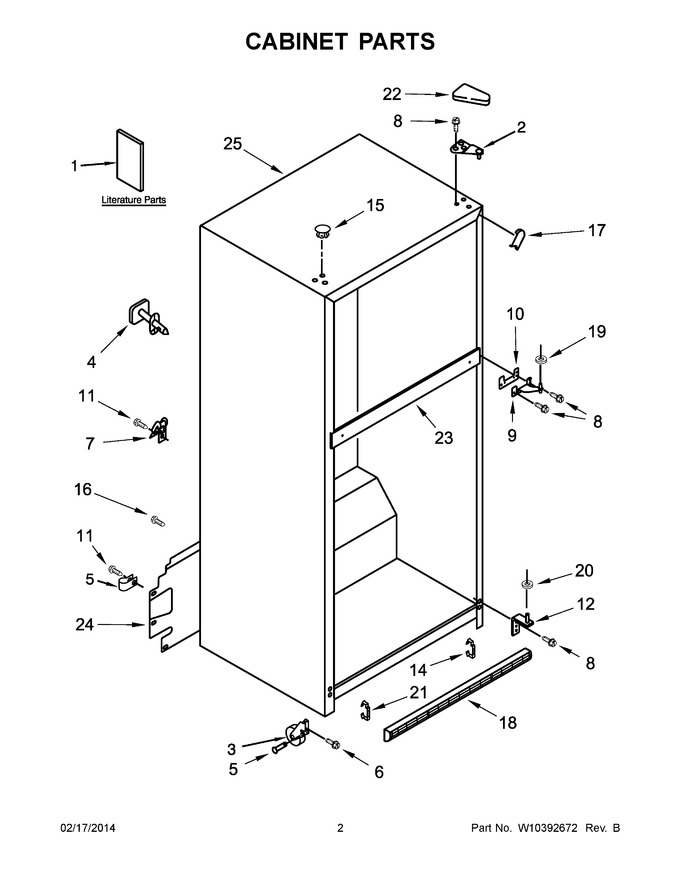

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10551713 | Use And Care Guide |
|
- | |||||
| 1 | 677969 | Do-it-yourself Repair Manuals |
|
$ 30.30 | |||||
| 1 | W10404596 | Service And Wiring Sheet |
|
- | |||||
| 1 | W10417747 | Energy Label |
|
- | |||||
| 2 | WP2261963 | Assembly, Top Hinge (Replaces: 2261963) |
|
Immediately | $ 119.42 | ||||
| 3 | WP2166108 | Assembly, Roller (Replaces: 2166108) |
|
Immediately | $ 34.76 | ||||
| 5 | WP488366 | Clamp, Tube (Replaces: 489385) |
|
$ 11.92 | |||||
| 5 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 6 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 7.55 | |||||
| 7 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 8 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 9 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 92.02 | ||||
| 10 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 11.18 | |||||
| 11 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 8.38 | ||||
| 12 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
$ 9.28 | |||||
| 13 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 14 | 2254385 | Clip, Grille |
|
$ 88.87 | |||||
| 15 | WP2151652 | Hole Plug (white) (Replaces: 2201012) |
|
$ 22.87 | |||||
| 15 | WP2183998 | Hole Plug (black) (Replaces: 2183998) |
|
$ 19.01 | |||||
| 16 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 17 | WPW10283959 | Corner Filler (white) (Replaces: W10283959) |
|
$ 8.21 | |||||
| 17 | W11252732 | Corner Filler (black) (Replaces: W10283960) |
|
$ 13.07 | |||||
| 18 | WP2254386 | Grille, Toe (white) (Replaces: 2254386) |
|
$ 99.26 | |||||
| 18 | 2254388 | Grille, Toe (black) |
|
$ 40.22 | |||||
| 19 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 20 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 10.74 | ||||
| 21 | 2189356 | Clip, Grille |
|
$ 5.70 | |||||
| 22 | WP2213363 | Cover, Hinge (black) (Replaces: 2213363) |
|
Immediately | $ 19.12 | ||||
| 22 | WP2213360 | Cover, Hinge (white) (Replaces: 2213360) |
|
$ 20.19 | |||||
| 23 | N/P | Rail, Center (not Serviced |
|
- | |||||
| 24 | W10636716 | Cover, Unit (Replaces: W10384413) |
|
$ 105.27 | |||||
| 25 | N/P | Cabinet (not A Serviceable Part) |
|
- |
