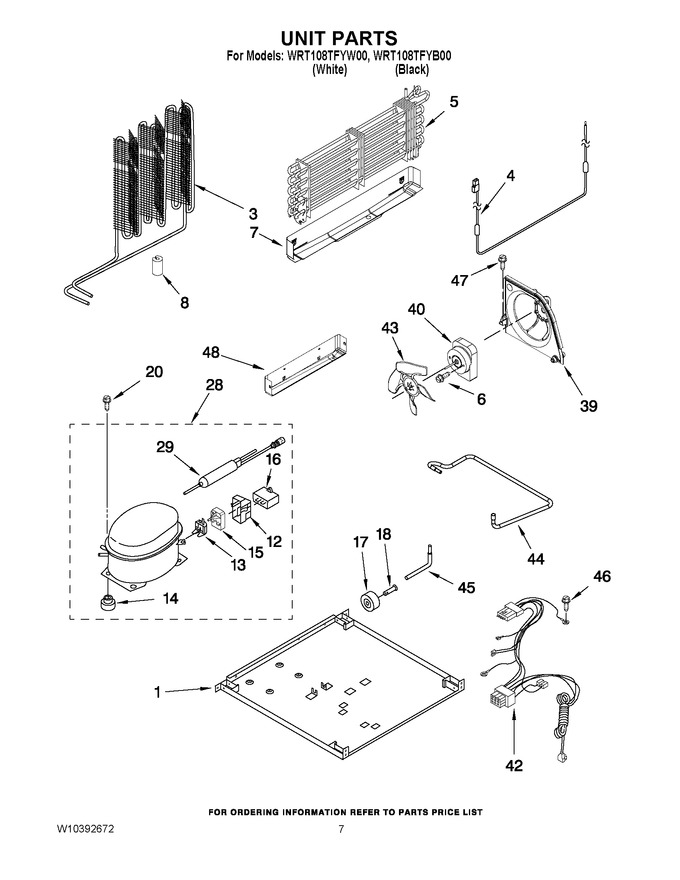

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10300116 | Plate, Unit Mounting |
|
$ 164.30 | |||||
| 3 | W10376576 | Condenser |
|
- | |||||
| 4 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 257.91 | ||||
| 5 | WPW10314205 | Evaporator Assy. (Replaces: W10314205) |
|
$ 361.39 | |||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | W10890667 | Drain Pan (Replaces: W10314200) |
|
$ 151.95 | |||||
| 12 | WP2162358 | Cover (production) (Replaces: 2162358) |
|
$ 95.29 | |||||
| 12 | WP2162358 | Cover ((service)) (Replaces: 4387731) |
|
$ 95.29 | |||||
| 13 | WP4387938 | Overload (service (includes Relay)) (Replaces: 4387938) |
|
$ 198.58 | |||||
| 13 | WP2302290 | Overload (production) (Replaces: 2302290) |
|
$ 140.22 | |||||
| 14 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 7.30 | |||||
| 14 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 15 | 8201647 | Start-relay (production Compressor Only) (Replaces: 2225930) |
|
$ 189.03 | |||||
| 16 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 17 | WPW10475495 | Roller (2) (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Rivet (Replaces: 2221797) |
|
Immediately | $ 19.12 | ||||
| 20 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 28 | W10233960 | Compressor (includes Items 14,15,16 & 29) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: W10237272) |
|
Immediately | $ 539.34 | ||||
| 29 | WPW10143759 | Drier (service) (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 29 | W10843121 | Drier (production) (Replaces: 2199167) |
|
Immediately | $ 57.13 | ||||
| 39 | WP2315541 | Air Baffle (Replaces: 2315541) |
|
Immediately | $ 87.99 | ||||
| 40 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 124.18 | ||||
| 42 | W10315318 | Wire Assy. Unit |
|
$ 119.14 | |||||
| 43 | WPW10139483 | Fan, Blade (Replaces: W10139483) |
|
$ 99.82 | |||||
| 44 | W10376575 | Tube, Suction |
|
- | |||||
| 45 | W11676464 | Tube, Process (Replaces: 2212848) |
|
$ 108.61 | |||||
| 46 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 47 | 3400518 | Screw |
|
$ 13.63 | |||||
| 48 | WPW10314195 | Shield Heat (Replaces: W10314195) |
|
$ 101.34 | |||||
| NI | N/P | Refrigerant Charge (3.75 Ozs. R134a)) |
|
- | |||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access 1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 95.92 | ||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 |
