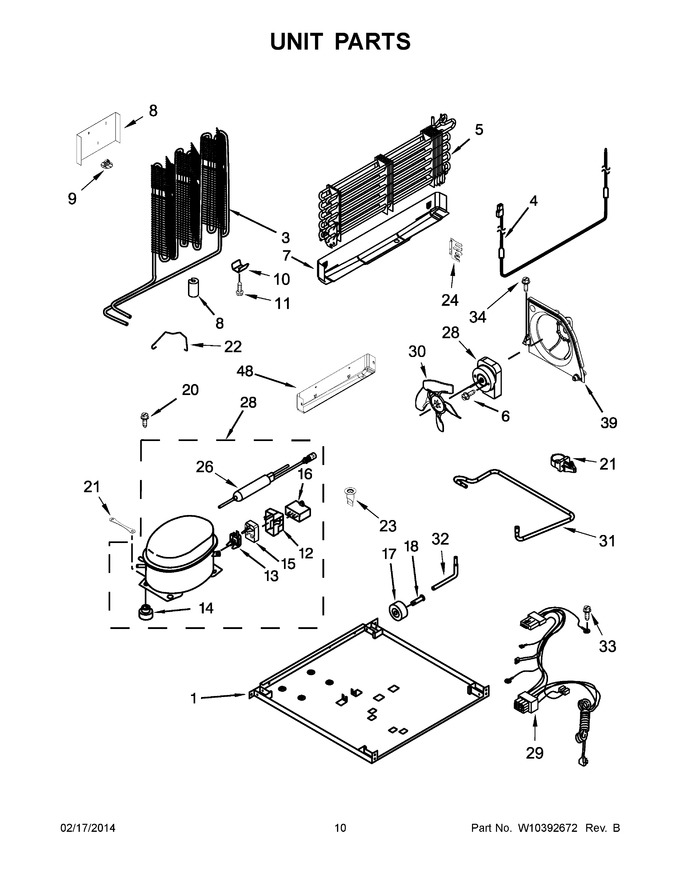

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10300116 | Plate, Unit Mounting |
|
$ 147.87 | |||||
| 3 | W10376576 | Condenser |
|
- | |||||
| 4 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 232.12 | ||||
| 5 | WPW10314205 | Assembly, Evaporator (Replaces: W10314205) |
|
$ 325.25 | |||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | W10890667 | Tray, Drain (Replaces: W10466213) |
|
$ 136.76 | |||||
| 8 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
Immediately | $ 7.28 | ||||
| 9 | W10349514 | Cover, Condenser Bottom |
|
$ 74.16 | |||||
| 10 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 17.44 | |||||
| 11 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.92 | |||||
| 12 | WP2162358 | Cover ((service)) (Replaces: 4387731) |
|
$ 85.76 | |||||
| 12 | WP2162358 | Cover, Terminal (Replaces: 2162358) |
|
$ 85.76 | |||||
| 13 | WP4387938 | Overload (service Only) (Replaces: 4387938) |
|
$ 178.72 | |||||
| 13 | WP2302290 | Protector, Overload (Replaces: 2302290) |
|
$ 126.20 | |||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 6.80 | |||||
| 15 | W10892065 | Device, Combination Start (start Relay And Overload) (Replaces: W10330832) |
|
$ 166.66 | |||||
| 16 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2221797) |
|
Immediately | $ 17.21 | ||||
| 19 | 2219077 | Clip, Harness |
|
$ 57.82 | |||||
| 20 | 876811 | Screw (Replaces: 489373) |
|
$ 7.01 | |||||
| 21 | W10236396 | Strap, Compressor |
|
Immediately | $ 18.73 | ||||
| 22 | W10249638 | Strap, Bale |
|
- | |||||
| 23 | W11190084 | Valve, Drain (Replaces: W10519112) |
|
Immediately | $ 59.00 | ||||
| 24 | W10314197 | Bracket, Evaporator |
|
$ 21.10 | |||||
| 25 | W10233960 | Compressor (Replaces: W10237272) |
|
Immediately | $ 485.41 | ||||
| 26 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 27.70 | ||||
| 26 | W10843121 | Drier (production) (Replaces: 2199167) |
|
Immediately | $ 51.42 | ||||
| 27 | WP2315541 | Baffle, Air (Replaces: 2315541) |
|
Immediately | $ 79.19 | ||||
| 28 | WP2188874 | Motor, Condenser (Replaces: W10508362) |
|
Immediately | $ 111.76 | ||||
| 29 | W10315318 | Wire Assembly Unit |
|
$ 107.23 | |||||
| 30 | WPW10139483 | Blade, Fan (Replaces: W10139483) |
|
$ 89.84 | |||||
| 31 | W10376575 | Tube, Suction |
|
- | |||||
| 32 | W11676464 | Tube, Process (Replaces: 2212848) |
|
$ 97.75 | |||||
| 33 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 34 | 3400518 | Screw |
|
$ 12.27 | |||||
| 35 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 91.21 | |||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 16.79 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access Ÿ``) |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 86.33 | ||||
| NI | N/P | Refrigerant Charge 3.75 Oz. (r-134) |
|
- | |||||
| NI | WP978025 | Valve, Access (Œ``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 121.04 |
