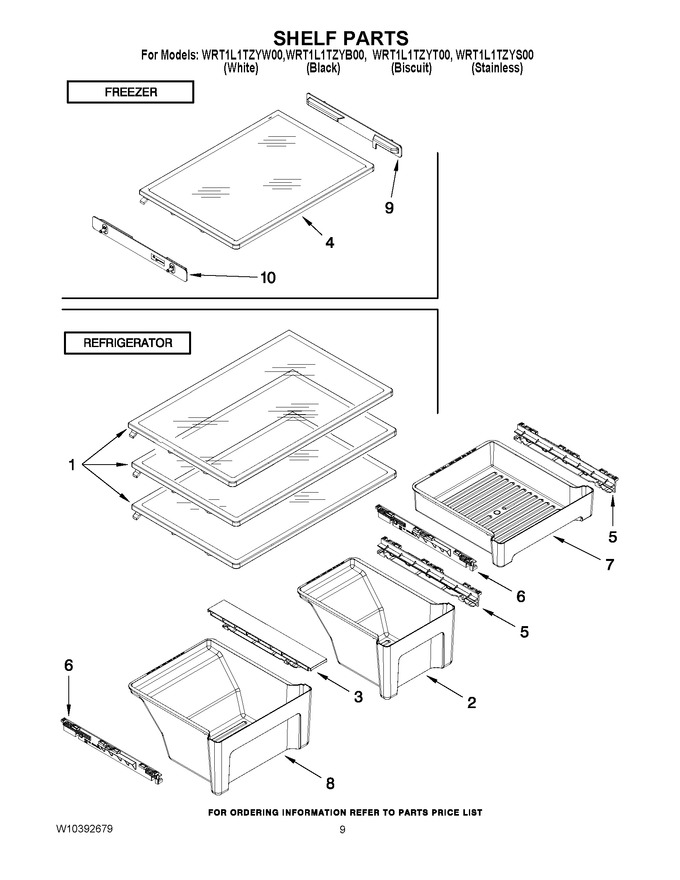

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10308856 | Shelf Assy 33`` |
|
- | |||||
| 2 | W10373943 | Crisper Pan 11`` |
|
$ 57.54 | |||||
| 3 | WPW10468557 | Track Rail Ctr (Replaces: W10308864) |
|
Immediately | $ 30.75 | ||||
| 4 | WPW10486291 | Shelf Glass Fc (Replaces: W10339690) |
|
$ 302.44 | |||||
| 5 | WPW10468556 | Track Rail Rs (Replaces: W10308862) |
|
Immediately | $ 7.55 | ||||
| 6 | WPW10468555 | Track Rail Ls (Replaces: W10308863) |
|
Immediately | $ 25.10 | ||||
| 7 | WPW10308849 | Meat Pan 33`` (Replaces: W10308849) |
|
$ 142.20 | |||||
| 8 | W10373936 | Crisper Pan 16`` |
|
$ 68.71 | |||||
| 9 | W11395921 | Shelf Support Rs (Replaces: W10345368) |
|
$ 30.07 | |||||
| 10 | W11395919 | Shelf Support Ls (Replaces: W10345367) |
|
$ 30.07 |
