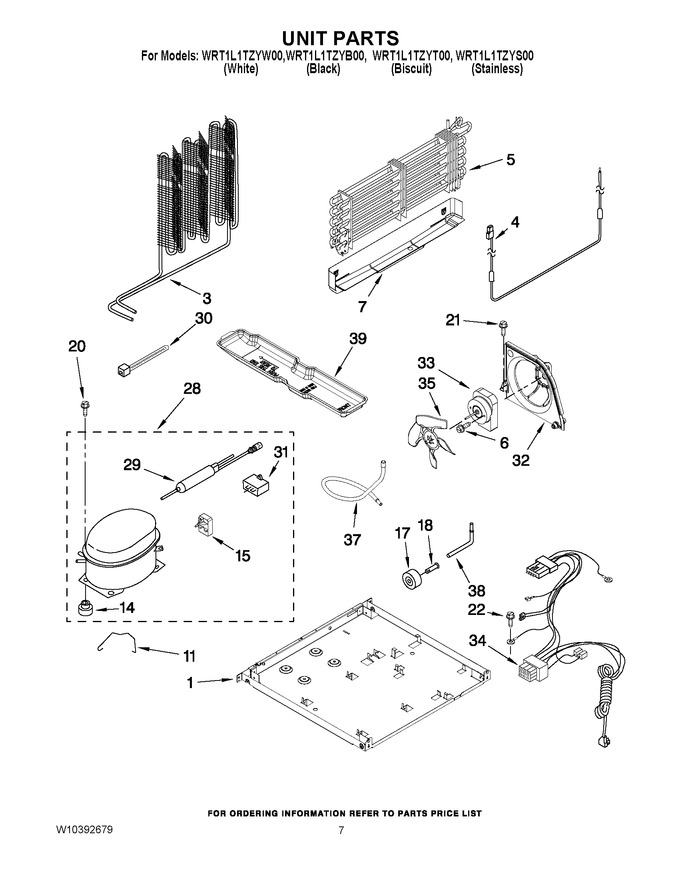

04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11396825 | Plate, Unit Mounting (Replaces: W10300118) |
|
$ 126.14 | |||||
| 3 | WPW10342567 | Condenser (Replaces: W10342567) |
|
$ 250.38 | |||||
| 4 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 232.12 | ||||
| 5 | WPW10314205 | Evaporator Assy. (Replaces: W10314205) |
|
$ 325.25 | |||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | W10890667 | Drain Pan (Replaces: W10314200) |
|
$ 136.76 | |||||
| 11 | W10249638 | Strap |
|
- | |||||
| 14 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.01 | |||||
| 14 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 6.57 | |||||
| 15 | W10892065 | Start-device Combination (start Relay And Overload For Production Compressor Only) (Replaces: W10330832) |
|
$ 166.66 | |||||
| 17 | WPW10475495 | Roller (2) (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Rivet (Replaces: 2221797) |
|
Immediately | $ 17.21 | ||||
| 20 | 876811 | Screw (Replaces: 489373) |
|
$ 7.01 | |||||
| 21 | 3400518 | Screw |
|
$ 12.27 | |||||
| 22 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 28 | W10233960 | Compressor (includes Illus. 14,29,31) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: W10187125) |
|
Immediately | $ 485.41 | ||||
| 29 | WPW10143759 | Drier (service) (Replaces: W10143759) |
|
Immediately | $ 27.70 | ||||
| 29 | WPW10143759 | Drier (production) (Replaces: W10177049) |
|
Immediately | $ 27.70 | ||||
| 30 | WPW10339879 | Clamp (Replaces: 2263990) |
|
$ 7.47 | |||||
| 31 | WPW10662129 | Capacitator (service) (Replaces: 1118576) |
|
Immediately | $ 52.97 | ||||
| 31 | WPW10662129 | Capacitator (production) (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 32 | WP2315541 | Air Baffle (Replaces: 2315541) |
|
Immediately | $ 79.19 | ||||
| 33 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 111.76 | ||||
| 34 | W10315318 | Wire Assembly Unit |
|
$ 107.23 | |||||
| 35 | WPW10139483 | Fan Blade (Replaces: W10139483) |
|
$ 89.84 | |||||
| 37 | W10319864 | Tube, Suction |
|
- | |||||
| 38 | W11676464 | Tube, Process (Replaces: 2212848) |
|
$ 97.75 | |||||
| 39 | W10890667 | Tray, Evaporator (Replaces: W10314200) |
|
$ 136.76 | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 86.33 | ||||
| NI | N/P | Refrigerant Charge (4.00 Ozs. (r134a)) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 |
