01 - Cabinet Parts
02 - Door Parts

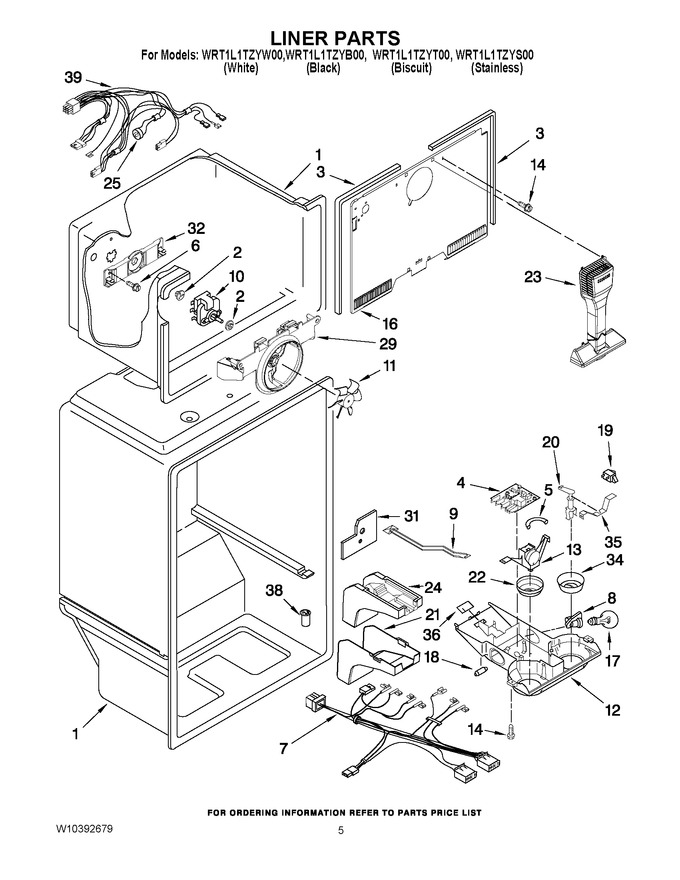

03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 41.55 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (2) (Replaces: 2254360) |
|
$ 25.31 | |||||
| 4 | WPW10352689 | Adaptive Defrost Control (Replaces: W10352689) |
|
$ 269.73 | |||||
| 5 | WP2196003 | Thermostat Tube Barrier (Replaces: W10381575) |
|
$ 7.52 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 7 | W10318068 | Wire Assembly, Control Box |
|
$ 119.32 | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 9 | 2179858 | Damper, Air |
|
- | |||||
| 10 | WPW10189703 | Fan Motor (Replaces: W10208121) |
|
Immediately | $ 68.73 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2200509) |
|
Immediately | $ 96.85 | ||||
| 12 | W10316941 | Control Box |
|
$ 88.72 | |||||
| 13 | WPW10584888 | Thermostat Assy. (includes Illus. 5 & 18) (Replaces: W10343913) |
|
Immediately | $ 233.92 | ||||
| 14 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 16 | W10385132 | Cover, Evaporator |
|
- | |||||
| 17 | W10887190 | Light Bulb (2) (Replaces: W10311528) |
|
Immediately | $ 17.31 | ||||
| 18 | 2200831 | Weight, Thermal |
|
- | |||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 35.18 | ||||
| 20 | 2179859 | Post, Damper |
|
- | |||||
| 21 | WPW10305175 | Cover, Air Diffuser (Replaces: W10305175) |
|
$ 102.92 | |||||
| 22 | W10356940 | Knob, Thermostat |
|
- | |||||
| 23 | W10305174 | Air Tower |
|
$ 43.06 | |||||
| 24 | W10376137 | Air Diffuser, Bottom |
|
- | |||||
| 25 | WP2321800 | Defrost, Bi-metal (Replaces: 2321800) |
|
Immediately | $ 114.22 | ||||
| 29 | 2254453 | Bracket, Fan Motor |
|
$ 45.87 | |||||
| 31 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 91.21 | |||||
| 32 | 2254454 | Bracket Evap. Fan, Rear |
|
Immediately | $ 67.90 | ||||
| 34 | 2302536 | Knob, Damper |
|
$ 27.08 | |||||
| 35 | 2163810 | Bracket, Damper Knob |
|
$ 6.01 | |||||
| 36 | WP2205079 | Seal, Rear Thermostat (Replaces: 2205079) |
|
$ 9.01 | |||||
| 38 | WP2210509 | Valve, Tube-body (Replaces: 2210509) |
|
$ 89.24 | |||||
| 39 | W10340064 | Wire Assembly, Freezer Compartment (includes Illus. 25) |
|
- |
