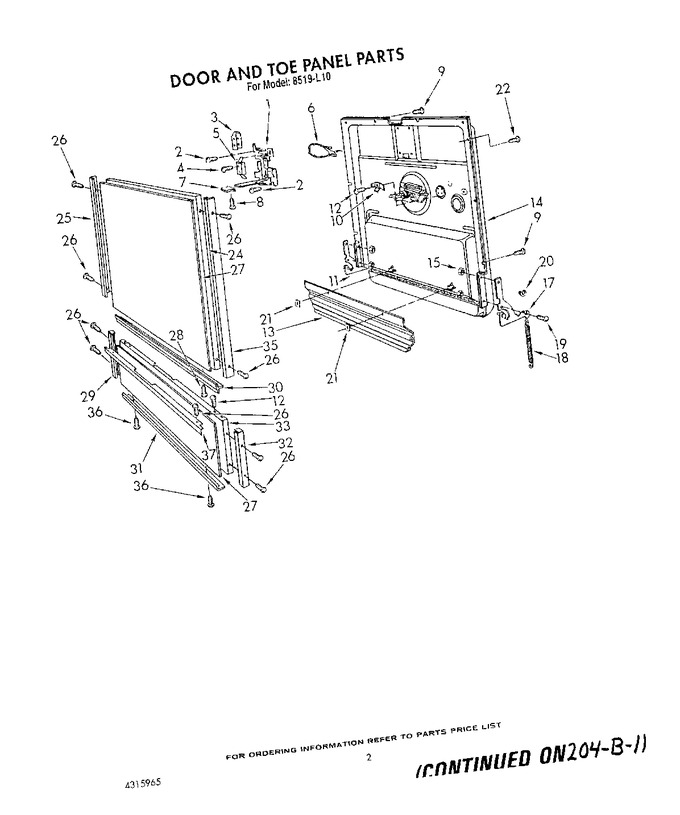

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	965163		Latch Assembly		Appelez-nous	-
2	4340832		Screw, 8 X 5/8		Appelez-nous	-
3	965165		Switch Cover		Appelez-nous	-
4	965166		Screw, 6-32 X 1		Appelez-nous	-
5	965167		Switch		Appelez-nous	-
6	WPW10339879		Wire Tie   (Replaces: 4340846)				$ 7.47
7	965169		Latch Knob		Appelez-nous	-
8	4340864		Screw, 8-32 X 5/16		Appelez-nous	-
9	4340841		Screw, 8 X 7/16		Appelez-nous	-
10	965300		Terminal, Grounding		Appelez-nous	-
11	965172		Counterbalance Arm, L.h.		Appelez-nous	-
12	WP965173		Screw, 8 X 3/8   (Replaces: 965173)			Immediately	$ 10.68
13	965358		Baffle Seal		Appelez-nous	-
14	965357		Door, Inner		Appelez-nous	-
15	W10080180		Nut, 10-24 (4)   (Replaces: 965176)				$ 12.74
17	965178		Counterbalance Arm, R.h.		Appelez-nous	-
18	965179		Door Spring (2)		Appelez-nous	-
19	4343140		Screw, 8 X 3/8		Appelez-nous	-
20	965181		Spring Pad (2)		Appelez-nous	-
21	4340830		Speednut		Appelez-nous	-
22	W11693756		Screw, 8 X 5/8   (Replaces: 965183)			Immediately	$ 13.28
24	965184		Door Panel (white)		Appelez-nous	-
25	965326		Trim, Door Side L.h.		Appelez-nous	-
26	965186		Screw, 6 X 1/4		Appelez-nous	-
27	4340798		Door & Access Panel Inserts (coffee)		Appelez-nous	-
27	4340797		Door & Access Panel Inserts (wheat)		Appelez-nous	-
27	4340796		Door & Access Panel Inserts (almond)		Appelez-nous	-
27	4340799		Door & Access Panel Inserts (avocado)		Appelez-nous	-
27	4340800		Door And Access Panel Inserts (black)		Appelez-nous	-
28	WP488729		Screw, 8 X 1/2   (Replaces: 965188)			Immediately	$ 7.45
29	965189		Trim, Access Panel L.h.		Appelez-nous	-
30	965359		Door Trim, Bottom		Appelez-nous	-
31	965191		Access Trim, Bottom		Appelez-nous	-
32	965192		Trim, Access Panel R.h.		Appelez-nous	-
33	4340601		Access Panel (white)		Appelez-nous	-
35	965325		Trim, Door Side R.h.		Appelez-nous	-
36	965338		Screw, 8 X 3/8		Appelez-nous	-
37	965339		Trim, Access Panel Top		Appelez-nous	-
