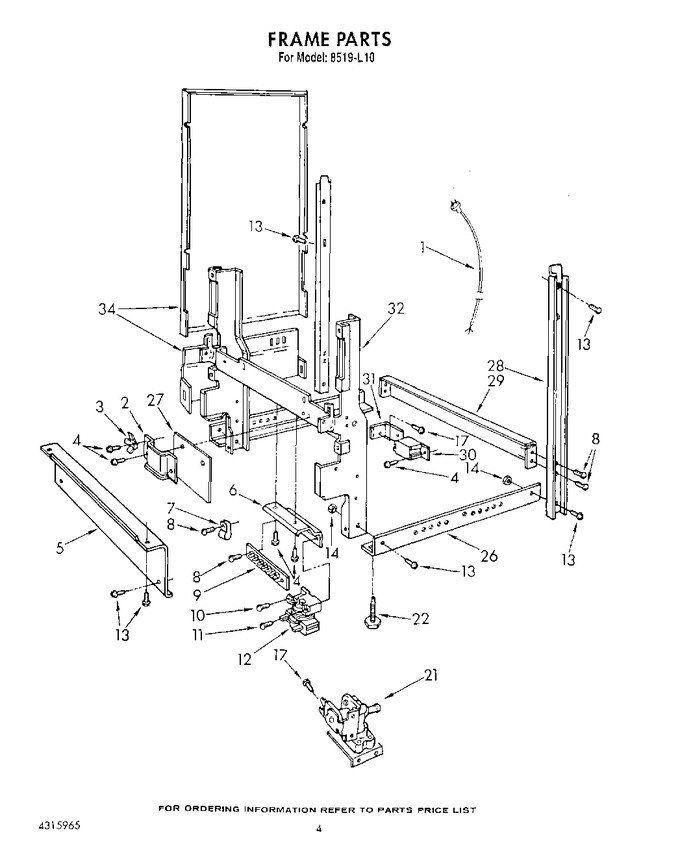

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	965337		Power Cord (optional)		Appelez-nous	-
2	965248		Clamp, Wiring		Appelez-nous	-
3	965300		Terminal, Grounding		Appelez-nous	-
4	965301		Screw, 8 X 3/8		Appelez-nous	-
5	965249		Toeplate		Appelez-nous	-
6	965334		Terminal Bracket		Appelez-nous	-
7	965161		Clamp, Wire		Appelez-nous	-
8	WP488729		Screw, 8 X 1/2   (Replaces: 965188)			Immediately	$ 7.45
9	965251		Terminal Block		Appelez-nous	-
10	WP486579		Screw, 8-32 X 1/4   (Replaces: 965252)				$ 7.10
11	965253		Screw, 8-32 X 1-1/4		Appelez-nous	-
12	965254		Motor Relay		Appelez-nous	-
13	965255		Screw, 1/4-20 X 1/2		Appelez-nous	-
14	WP487939		Nut, 1/4-20 (4)   (Replaces: 965256)				$ 7.76
17	WP681414		Screw, 10 X 1/2   (Replaces: 965308)			Immediately	$ 7.62
21	965335		Valve, Inlet		Appelez-nous	-
22	965355		Levelers (4)		Appelez-nous	-
26	965356		Angle, Base (2)		Appelez-nous	-
27	4340862		Shield, Wire		Appelez-nous	-
28	965269		Channel, Side (2)		Appelez-nous	-
29	965270		Brace, Rear		Appelez-nous	-
30	965271		Cover, Junction Box		Appelez-nous	-
31	965272		Bracket, Junction Box		Appelez-nous	-
32	965336		Hinge Weld Assembly		Appelez-nous	-
34	965306		Side Panel Kit (wheat)		Appelez-nous	-
34	965307		Side Panel Kit (almond)		Appelez-nous	-
34	965305		Side Panel Kit (avocado)		Appelez-nous	-
34	965304		Side Panel Kit (coffee)		Appelez-nous	-
34	965303		Side Panel Kit (white)		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
	LIT965139		Instructions, Installation		Appelez-nous	-
	LIT4343089		Guide, Use & Care		Appelez-nous	-
	LIT4315965		Parts List		Appelez-nous	-
	285006		Paint, Spray 13 Oz. (black)				$ 53.90
	350942		Primer (white)   (Replaces: 206922)				$ 84.73
	350941		Leveler (thinner)		Appelez-nous	-
	799640		Kit, Epoxy Patch (white)		Appelez-nous	-
	675476		Vinyl Touch Up (blue)		Appelez-nous	-
	675506		Tine Tip Repair Kit (blue-enough For Two Complete Dishracks)		Appelez-nous	-
