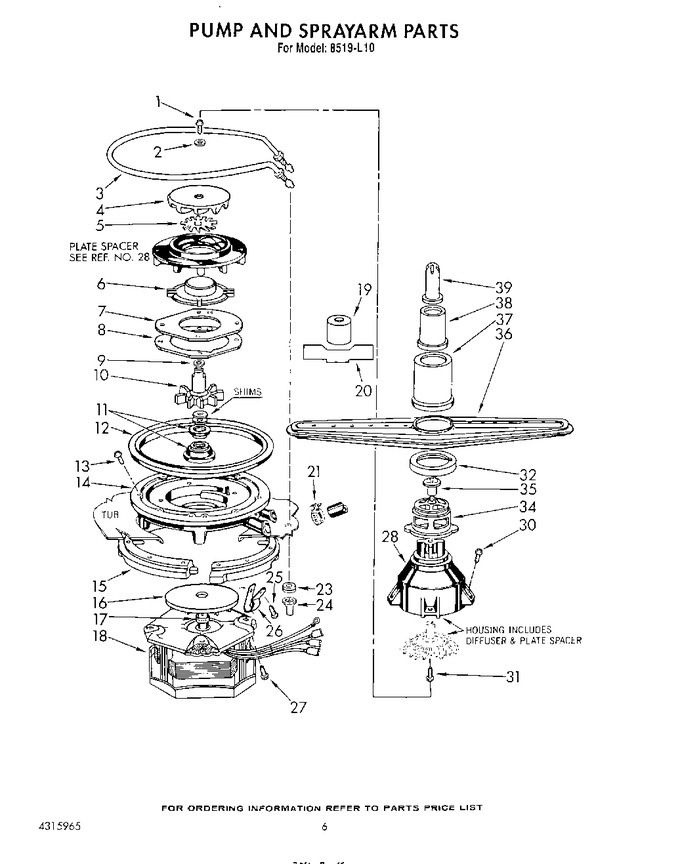

05 - Pump And Spray Arm


06 - Detergent Dub


07 - Dishrack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4340235		Screw, No.10-32 X 2 1/4		Appelez-nous	-
2	4340098		Washer		Appelez-nous	-
3	4340843		Heater (includes Items 23 & 24)		Appelez-nous	-
4	4340815		Upper Impeller		Appelez-nous	-
5	4340535		Macerator Blade		Appelez-nous	-
6	4340225		Impeller Shroud		Appelez-nous	-
7	4340510		Pump Plate		Appelez-nous	-
8	4340487		Pump Gasket		Appelez-nous	-
9	4340254		O-ring		Appelez-nous	-
10	4342618		Pump Seal Kit (includes Items 2, 4, 5, 9, 11 & 20)		Appelez-nous	-
11	4340106		Water Seal		Appelez-nous	-
12	4340818		Gasket		Appelez-nous	-
13	4343142		Screw, 10 X 1		Appelez-nous	-
14	4340842		Housing, Pump		Appelez-nous	-
15	4340490		Clamp Ring (2)		Appelez-nous	-
16	4340785		Watershield Assembly		Appelez-nous	-
17	4340784		Tolerance Ring		Appelez-nous	-
18	4340848		Motor Assembly (includes Items 1, 9, 16 & 20)		Appelez-nous	-
19	4340107		Seal Installation Tool		Appelez-nous	-
20	4340362		Seal Shim Gage		Appelez-nous	-
21	WP285655		Hose Clamp   (Replaces: 4340211)			Immediately	$ 7.93
23	4340295		Heater Grommet		Appelez-nous	-
24	4340296		Heater Nut, 1/2		Appelez-nous	-
25	W11693756		Screw, 8 X 5/8   (Replaces: 4340399)			Immediately	$ 13.28
26	4340643		Clamp		Appelez-nous	-
27	4340828		Screw, 10 X 1		Appelez-nous	-
28	4340856		Impeller Housing Kit (includes Keys 6 & 7)		Appelez-nous	-
30	4340412		Screw, 10 X 1-3/4		Appelez-nous	-
31	4340857		Screw, 8 X 3/4		Appelez-nous	-
32	4340801		Shield Bearing		Appelez-nous	-
34	4340838		Bearing		Appelez-nous	-
35	4340825		Spray Arm Bolt		Appelez-nous	-
36	4340756		Sprayarm		Appelez-nous	-
37	4340565		Tower Base		Appelez-nous	-
38	4340566		Tower Section		Appelez-nous	-
39	4340567		Tower Tip		Appelez-nous	-
