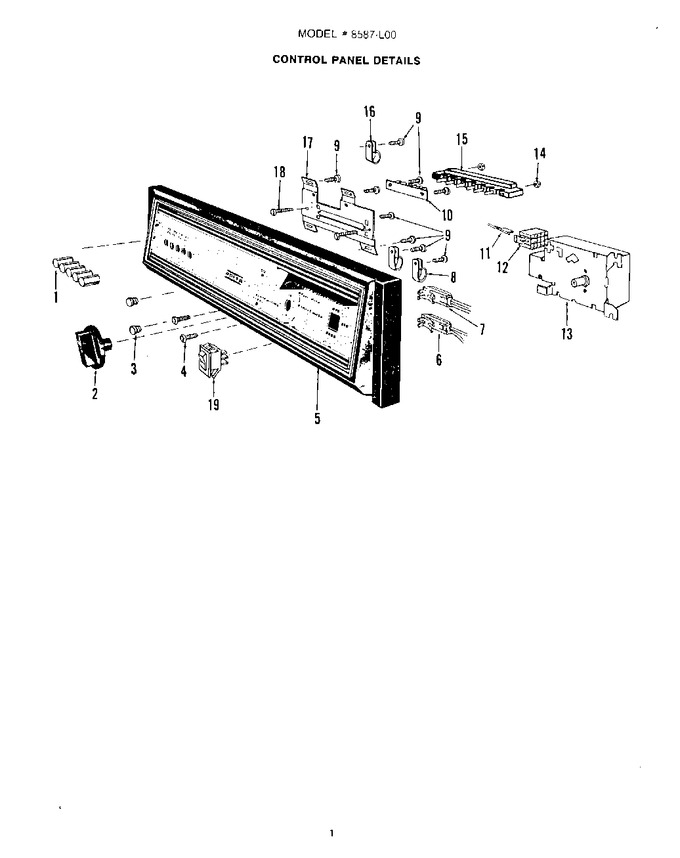

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	809369		Pushbuttons		Appelez-nous	-
2	809370		Timer Knob		Appelez-nous	-
3	809036		Lens		Appelez-nous	-
4	805324		Screw No. 10-32 X 27/32`` Lg. C.r. Truss Hd.		Appelez-nous	-
5	809374		Control Panel		Appelez-nous	-
6	809332		Light Assembly		Appelez-nous	-
7	809317		Light Assembly		Appelez-nous	-
8	808442		Clamp		Appelez-nous	-
9	809175		Screw No. 8b X 7/16`` Lg. C.r. Truss Hd. Cad. Pl.		Appelez-nous	-
10	808483		Terminal Board Assembly		Appelez-nous	-
11	808333		Housing Terminal		Appelez-nous	-
12	809296		Timer Terminal Housing		Appelez-nous	-
13	809190		Timer		Appelez-nous	-
14	803346		Nut		Appelez-nous	-
15	809368		Switch		Appelez-nous	-
16	W10833902		Clamp   (Replaces: 805584)				$ 10.39
17	809334		Switch Mounting Bracket		Appelez-nous	-
18	807103		Screw No. 8-32 X 1 3/8`` Lg. C.r. Truss Hd. Cad. Pl		Appelez-nous	-
19	809359		Rocker Switch		Appelez-nous	-
