Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 808827 Spiral Pin Appelez-nous -
2 154180301 Cam   (Replaces: 806566) Special Order $ 32.84

3 805227 Spring - Cam Appelez-nous -
4 806567 Spring-cam Compression Appelez-nous -
5 809029 Screw No. 8a X 5/8`` Lg. C.r. Truss Hd. Cad. Pl. Appelez-nous -
6 809072 Bi-metal Assembly Appelez-nous -
7 809028 Dispenser Lid Appelez-nous -
8 806647 ``o`` Ring Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

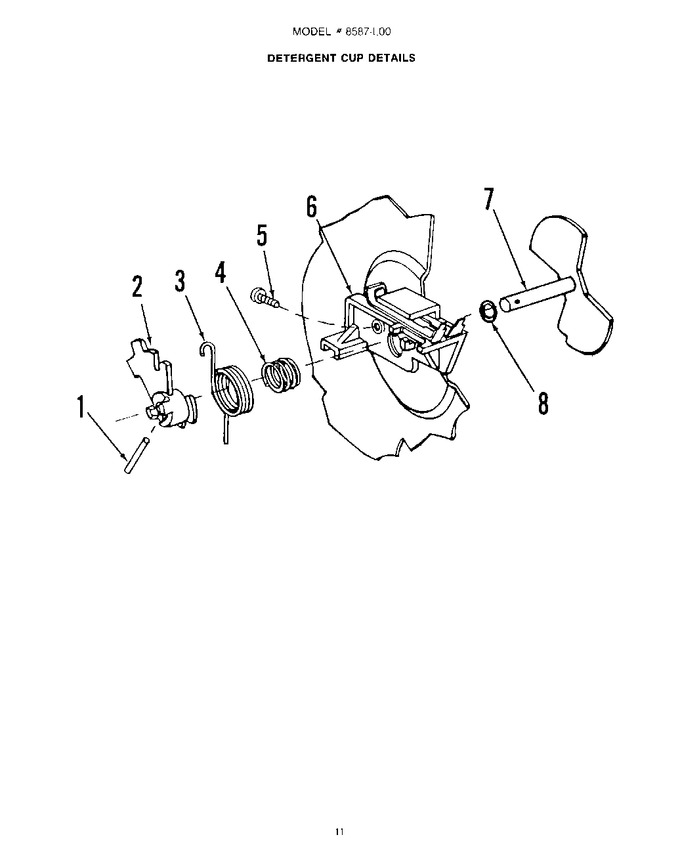

Diagram for 8587L00
