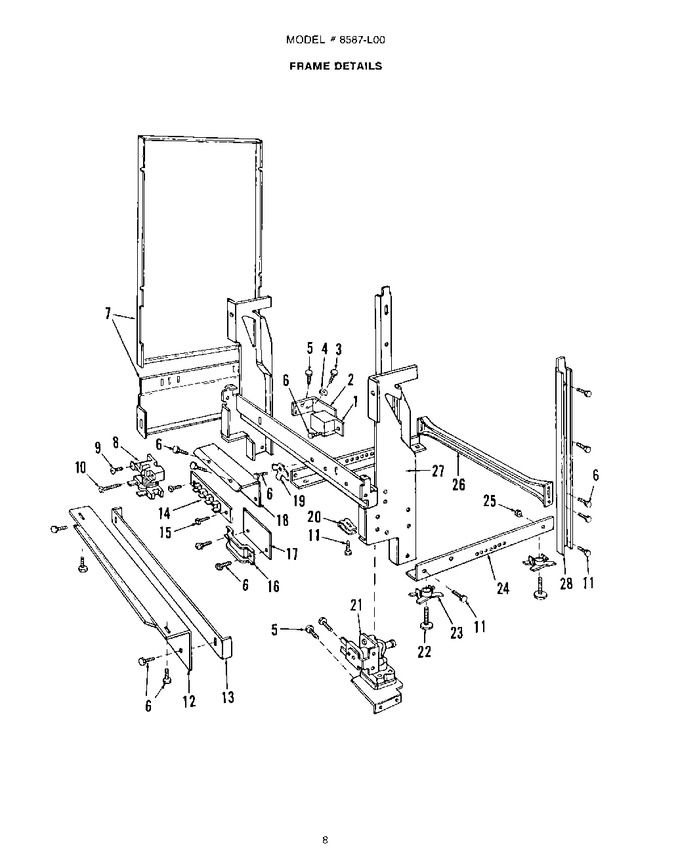

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	800222		Junction Box Cover		Appelez-nous	-
2	807019		Junction Box Bracket		Appelez-nous	-
3	807951		Screw No. 10-32 X 1/2`` C.r. Hex Washer Hd. Cad. Pl.		Appelez-nous	-
4	807373		Washer		Appelez-nous	-
5	807950		Screw No. 10b X 1/2`` Lg. Hex Slot Hd. Cad. Pl.		Appelez-nous	-
6	WP90767		Screw No. 8 X 3/8`` Lg. C.r. Hex Washer Hd. Black   (Replaces: 808658)			Immediately	$ 7.43
7	808882		Side Panel Kit (reversible Right Or Left) (avocado)		Appelez-nous	-
7	808884		Side Panel Kit (reversible Right Or Left) (almond)		Appelez-nous	-
7	808883		Side Panel Kit (reversible Right Or Left) (wheat)		Appelez-nous	-
7	808881		Side Panel Kit (reversible Right Or Left) (coffee)		Appelez-nous	-
7	808880		Side Panel Kit (reversible Right Or Left) (white)		Appelez-nous	-
8	805255		Motor Relay		Appelez-nous	-
9	WP488234		Screw No. 8-32 X 3/4`` Lg. C.r. Pan Hd. Cad. Pl.   (Replaces: 806593)				$ 6.37
10	804672		Screw No.8-32x1 1/4``lg. C.r. Oval Hd Cad. Pl.		Appelez-nous	-
11	807001		Screw No. 1/4-20 X 1/2`` Lg. Hex Washer Slotted Hd. Black		Appelez-nous	-
12	809304		Toeplate		Appelez-nous	-
13	809303		Adjustable Toeplate		Appelez-nous	-
14	COMM PART		Terminal Block Assembly   (Replaces: 807486)		Appelez-nous	-
15	807501		Screw No.8x1/2`` Lg. C.r. Truss Hd. Chrome Pl.		Appelez-nous	-
16	806723		Clamp - Wiring		Appelez-nous	-
17	809144		Wire Shield		Appelez-nous	-
18	807849		Terminal Board Bracket		Appelez-nous	-
19	807213		Grounding Terminal		Appelez-nous	-
20	808170		Speednut		Appelez-nous	-
21	809240		Water Inlet Valve		Appelez-nous	-
22	807672		Leveler		Appelez-nous	-
23	807671		Teenut - Snap- In		Appelez-nous	-
24	807851		Side Angle		Appelez-nous	-
25	M0282005		Nut   (Replaces: 804619)				$ 7.42
26	807852		Rear Brace		Appelez-nous	-
27	807848		Hinge Weld Assembly		Appelez-nous	-
28	808670		Support Channel		Appelez-nous	-
