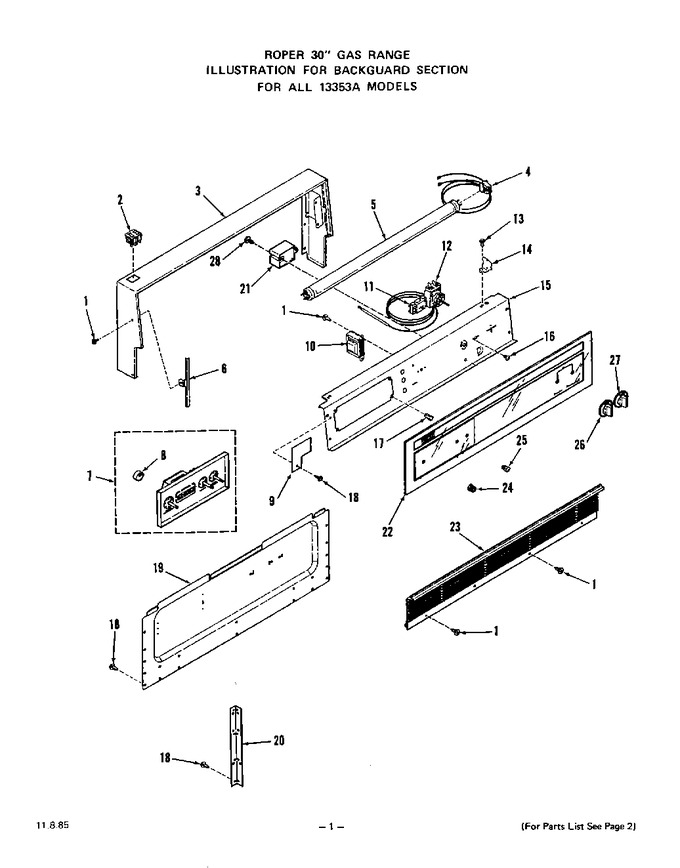

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327621		Screw 6-32x3/8``		Appelez-nous	-
2	307411		Switch-top & Oven Light		Appelez-nous	-
3	328407		Frame-backguard		Appelez-nous	-
4	229982		Left		Appelez-nous	-
4	307553		Right		Appelez-nous	-
5	71734		Flourescent Lamp (20 W-24``)		Appelez-nous	-
6	299705		End Trim-lamp Glass (lt. Or Rt.)		Appelez-nous	-
7	307446		Clock W/1 Hr. Timer (inc`s. 8)		Appelez-nous	-
8	283296		Clock Motor		Appelez-nous	-
9	301799		Shield-switch		Appelez-nous	-
10	98186		Ballast		Appelez-nous	-
11	321517		Selector Switch		Appelez-nous	-
12	321022		Thermostat		Appelez-nous	-
13	239113		Screw 6-32x3/8``		Appelez-nous	-
14	DD67-00074A		Bracket-flourescent Lamp (rt. Or Lt.)   (Replaces: 113236)			Immediately	$ 1.84
15	330797		Mounting Panel-control		Appelez-nous	-
16	78565		Screw 8-32x3/16``		Appelez-nous	-
17	293577		Tubular Clip (4 Required)		Appelez-nous	-
18	327320		Screw 10-16x7/16``		Appelez-nous	-
19	302906		Wire Cover-backguard		Appelez-nous	-
20	319361		Support-backguard (lt. Or Rt.)		Appelez-nous	-
21	320990		Module-spark Igniter		Appelez-nous	-
22	323808		Lamp Glass-backguard		Appelez-nous	-
23	324065		Front-backguard Bottom		Appelez-nous	-
24	294810		Knob-clock (minute Timer)		Appelez-nous	-
25	109225		Knob-clock (start & Stop Time)		Appelez-nous	-
26	327709		Knob-selector Switch		Appelez-nous	-
27	326955		Knob-thermostat		Appelez-nous	-
28	108788		Screw 6-32 X 1/2``		Appelez-nous	-
