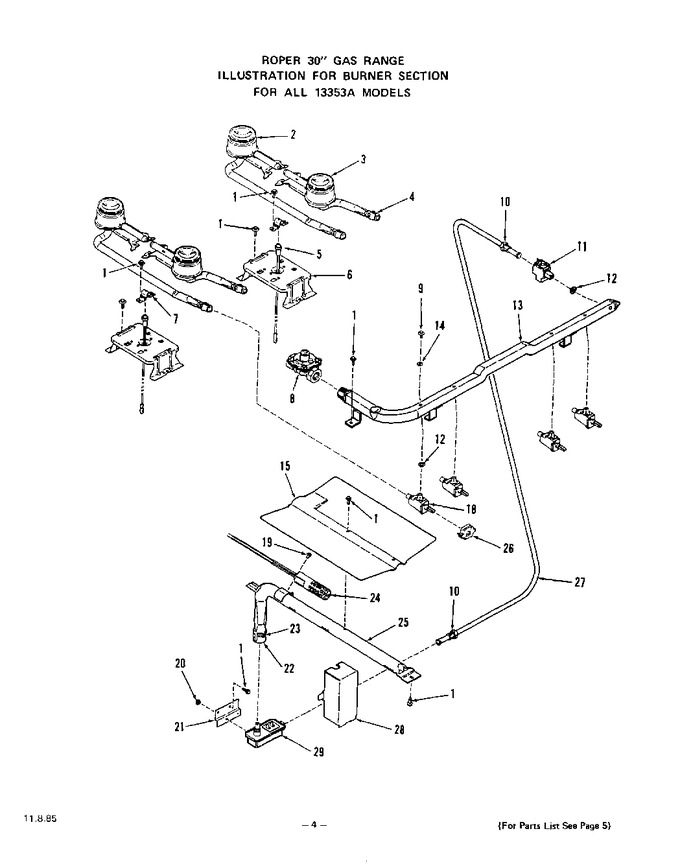

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x&616``		Appelez-nous	-
2	327075		Rear Top Burner-rt. Or Lt. (inc`s.4)		Appelez-nous	-
3	327074		Front Top Burner-rt. Or Lt. (inc`s.4)		Appelez-nous	-
4	327198		Air Shutter-4 Reg.		Appelez-nous	-
5	312455		Right		Appelez-nous	-
5	327216		Left		Appelez-nous	-
6	327073		Support-top Burner (lt. Or Rt.)		Appelez-nous	-
7	312453		Bracket-spark Igniter (rt. Or Lt.)		Appelez-nous	-
9	311455		Mounting Screw 1/4-20 (in`c.`s. 14)		Appelez-nous	-
10	113384		Inverted Nut 3/8``		Appelez-nous	-
11	326830		Shut Off Valve (inc`s. 12)		Appelez-nous	-
12	313563		Silcone Rubber Gasket (for 11, 18)		Appelez-nous	-
13	327182		Manifold Pipe		Appelez-nous	-
14	304241		Gasket		Appelez-nous	-
15	329316		Baffle - Oven Burner		Appelez-nous	-
18	324912		Gas Value-4 Reg. (inc`s. 9.12.14)		Appelez-nous	-
19	120855		Screw 6abx3/8``		Appelez-nous	-
20	236313		Keps Nuts 6-32		Appelez-nous	-
21	296179		Bracket-control Valve		Appelez-nous	-
22	312988		Air Shutter		Appelez-nous	-
23	312989		Adjustment Screw -air Shutter		Appelez-nous	-
24	WG02F04373		Igniter-oven Burner   (Replaces: 319887)			Immediately	$ 139.81
25	331173		Oven Burner (inc`s. 15,22,23)		Appelez-nous	-
26	310253		Switch-gas Valve (4 Rec.)		Appelez-nous	-
27	315807		Tubing 3/8``		Appelez-nous	-
28	327090		Wire Cover-control Valve		Appelez-nous	-
29	321756		Control Valve		Appelez-nous	-
