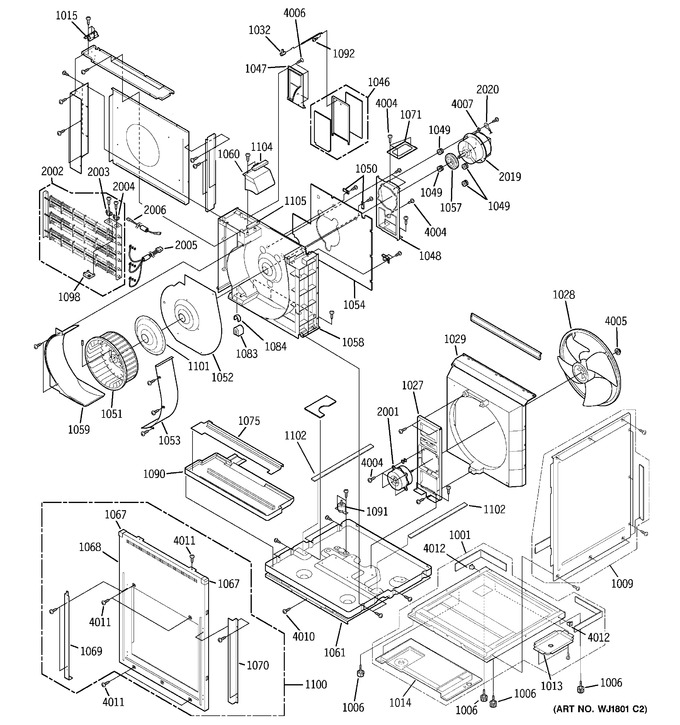

1 - Chassis Parts
2 - Motor, Heater & Base Pan Parts
3 - Control Parts
4 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1001 | WJ82X10031 | Bottom Angle Asm |
|
- | |||||
| 1006 | WJ01X10172 | Adjuster |
|
- | |||||
| 1009 | WJ82X10034 | Cabinet Side Plate R |
|
- | |||||
| 1013 | WJ89X10058 | Drain Tray |
|
- | |||||
| 1014 | WJ89X10057 | Base Insulation |
|
- | |||||
| 1015 | WJ79X10074 | Damper Lever Cover |
|
- | |||||
| 1027 | WJ65X10052 | Motor Angle |
|
- | |||||
| 1028 | WJ73X10060 | Propeller Fan |
|
- | |||||
| 1029 | WJ76X10107 | Condenser Shroud |
|
- | |||||
| 1032 | WJ14X10031 | Damper Lever |
|
- | |||||
| 1046 | WJ70X10040 | Damper Asm |
|
- | |||||
| 1047 | WJ70X10036 | Damper Frame |
|
- | |||||
| 1048 | WJ65X10050 | Id Motor Mount |
|
- | |||||
| 1049 | WJ01X10034 | Motor Cushion |
|
- | |||||
| 1050 | WJ01X10159 | Clamp |
|
- | |||||
| 1051 | WJ73X10059 | Centrifugal Fan |
|
- | |||||
| 1052 | WJ79X10079 | Housing Cover A |
|
- | |||||
| 1053 | WJ79X10075 | Housing Cover B |
|
- | |||||
| 1054 | WJ45X10024 | Insulator |
|
- | |||||
| 1057 | WJ01X10170 | Motor Rubber |
|
- | |||||
| 1058 | WJ76X10108 | Fan Housing |
|
- | |||||
| 1059 | WJ76X10109 | Fan Housing B |
|
- | |||||
| 1060 | WJ76X10110 | Fan Housing C |
|
- | |||||
| 1061 | WJ89X10044 | Base Pan Asm |
|
- | |||||
| 1067 | WJ01X10171 | Corner Cap |
|
- | |||||
| 1068 | WJ71X10268 | Front Panel |
|
- | |||||
| 1069 | WJ05X10029 | Filter Guide L |
|
- | |||||
| 1070 | WJ05X10030 | Filter Guide R |
|
- | |||||
| 1071 | WJ65X10051 | Brace |
|
- | |||||
| 1075 | WJ79X10076 | Drain Cover |
|
- | |||||
| 1083 | WJ40X10014 | Bulkhead Insulator |
|
- | |||||
| 1084 | WJ40X10015 | Bulkhead Insulator |
|
- | |||||
| 1090 | WJ70X10037 | Drain Tray |
|
- | |||||
| 1091 | WJ58X10017 | Drain Valve |
|
- | |||||
| 1092 | WJ37X10029 | Damper Wire |
|
- | |||||
| 1098 | WJ03X10032 | Protector Holder |
|
- | |||||
| 1100 | WJ82X10035 | Front Panel Asm |
|
- | |||||
| 1101 | WJ79X10078 | Housing Cover |
|
- | |||||
| 1102 | WJ60X10005 | Base Pan Seal |
|
- | |||||
| 1104 | WJ60X10007 | Fan Housing Seal B |
|
- | |||||
| 1105 | WJ60X10006 | Fan Housing Seal C |
|
- | |||||
| 2001 | WJ73X10061 | Fan Motor |
|
$ 320.03 | |||||
| 2002 | WJ70X10038 | Heater K |
|
- | |||||
| 2003 | WP28X10005 | Protector |
|
- | |||||
| 2004 | WP28X10007 | Protector |
|
- | |||||
| 2005 | WJ37X10030 | Heater Connector |
|
- | |||||
| 2006 | WJ36X10010 | Heater Wire |
|
- | |||||
| 2019 | WJ73X10062 | Fan Motor |
|
$ 455.97 | |||||
| 2020 | WJ37X10027 | Lead Wire |
|
- | |||||
| 4004 | WJ01X10037 | Special Screw |
|
- | |||||
| 4005 | WJ01X10041 | Special Nut |
|
- | |||||
| 4006 | WJ01X10056 | Special Screw |
|
- | |||||
| 4007 | WJ01X10166 | Special Screw |
|
- | |||||
| 4010 | WJ01X10175 | Special Screw |
|
- | |||||
| 4011 | WJ01X10176 | Special Screw |
|
- | |||||
| 4012 | WJ01X10177 | Special Screw |
|
- |
