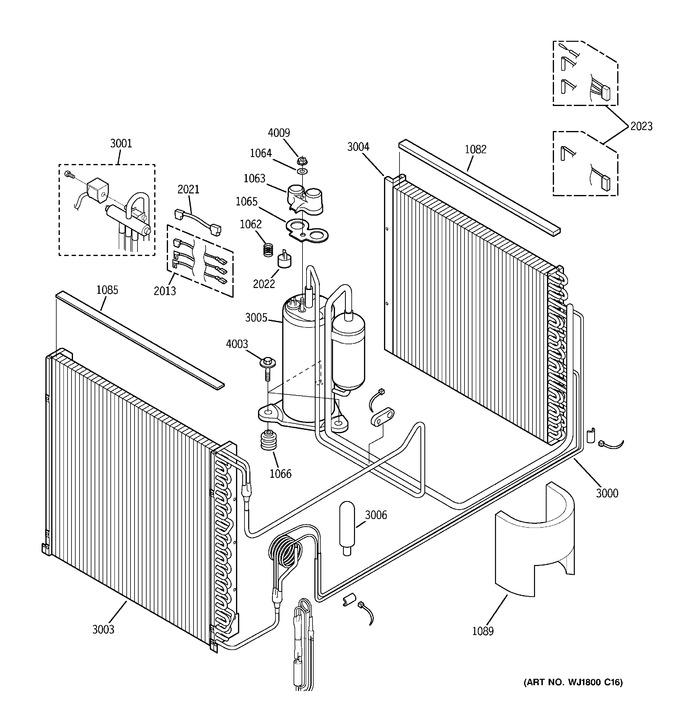

1 - Chassis Parts
2 - Motor, Heater & Base Pan Parts
3 - Control Parts
4 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1062 | WJ02X10001 | Protector Spring |
|
- | |||||
| 1063 | WJ79X10013 | Terminal Cover |
|
- | |||||
| 1064 | WJ01X10003 | Gasket Washer |
|
- | |||||
| 1065 | WJ43X10003 | Terminal Gasket |
|
- | |||||
| 1066 | WJ01X10046 | Compressor Cushion |
|
- | |||||
| 1082 | WJ45X10025 | Evaporator Insulator |
|
- | |||||
| 1085 | WJ45X10026 | Condenser Insulator |
|
- | |||||
| 1089 | WJ79X10017 | Compressor Cover |
|
- | |||||
| 2013 | WJ36X10011 | Comp. Wiring |
|
- | |||||
| 2021 | WJ27X10001 | Lead Wire |
|
- | |||||
| 2022 | WP23X10005 | Protector, Compressor |
|
$ 81.15 | |||||
| 2023 | WJ28X10027 | Thermistor Asm |
|
- | |||||
| 3000 | WJ53X128 | Cap. Tube Cut To 11.5" |
|
- | |||||
| 3001 | WJ58X10025 | 230v Rev Valve/coil Asm |
|
- | |||||
| 3003 | WJ88X10078 | Condenser Asm |
|
- | |||||
| 3004 | WJ87X10085 | Evaporator Asm |
|
- | |||||
| 3005 | WJ98X10006 | Compressor |
|
- | |||||
| 3006 | WJ46X10003 | Receiver |
|
- | |||||
| 4003 | WJ01X10031 | Stud Bolt |
|
- | |||||
| 4009 | WJ01X10010 | Special Nut |
|
- |
