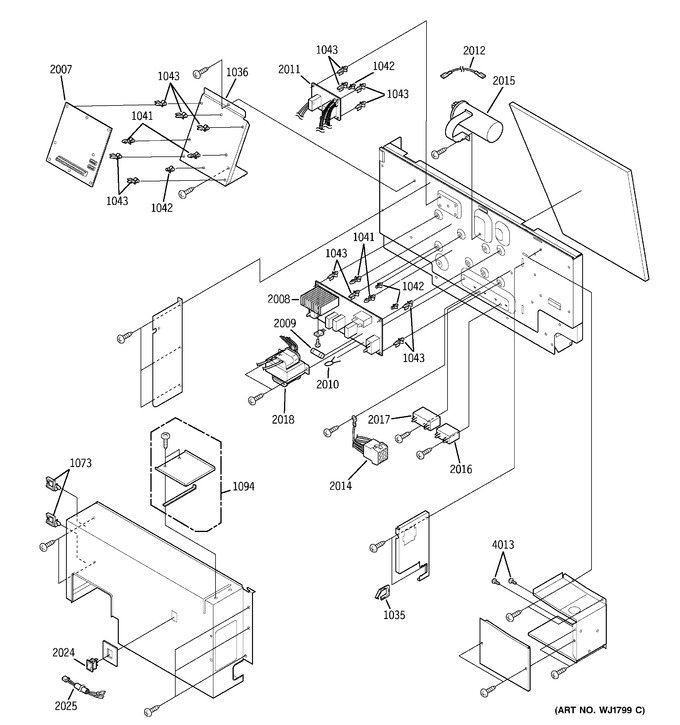

1 - Chassis Parts
2 - Motor, Heater & Base Pan Parts
3 - Control Parts
4 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1035 | WJ03X10033 | Wire Holder |
|
- | |||||
| 1036 | WJ01X10174 | Pwb Holder |
|
- | |||||
| 1041 | WJ01X10043 | Spacer |
|
- | |||||
| 1042 | WP01X10010 | Spacer |
|
- | |||||
| 1043 | WJ01X10155 | Spacer |
|
- | |||||
| 1073 | WP01X10009 | Cord Holder L |
|
- | |||||
| 1094 | WJ11X10008 | Plate Asm |
|
- | |||||
| 2007 | WJ26X10070 | Main Board Asm |
|
- | |||||
| 2008 | WJ26X10071 | Drive Board Asm |
|
- | |||||
| 2009 | WP23X10003 | Fuse |
|
- | |||||
| 2010 | WP27X10002 | Varistor |
|
- | |||||
| 2011 | WJ26X10072 | Sub Board Asm |
|
- | |||||
| 2012 | WJ37X10026 | Lead Wire |
|
- | |||||
| 2014 | WJ36X10012 | Connector K |
|
- | |||||
| 2015 | WJ20X748 | Running Capacitor |
|
- | |||||
| 2016 | WP20X10005 | Fan Motor Capacitor |
|
- | |||||
| 2017 | WJ20X10070 | Fan Motor Capacitor |
|
- | |||||
| 2018 | WP27X10023 | Transformer |
|
- | |||||
| 2024 | WJ26X10039 | Fan Switch |
|
- | |||||
| 2025 | WJ37X10028 | Lead Wire |
|
- | |||||
| 4013 | WJ01X10178 | Special Screw |
|
- |
