View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

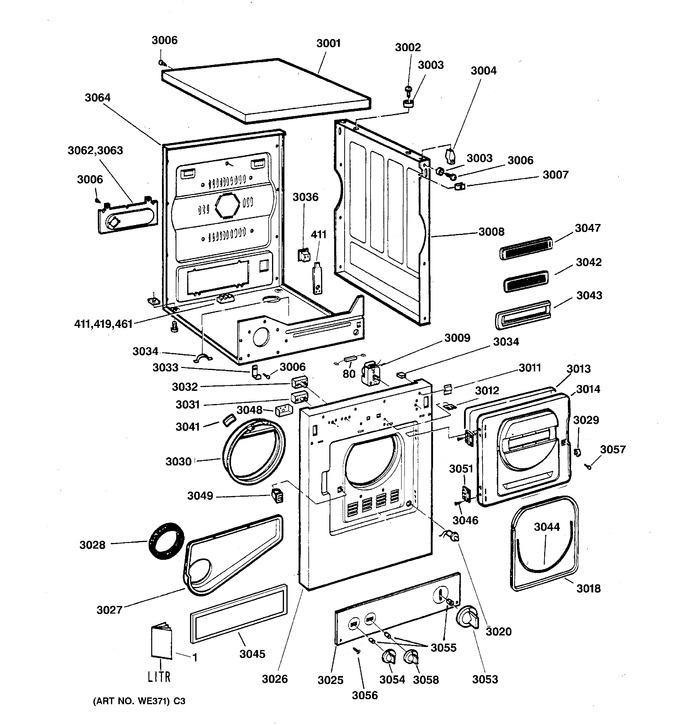

1 - Cabinet, Front Panel, Door & Control Panel
2 - Blower
3 - Drum
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-9898 | Use & Care Manual |
|
- | |||||
| 1 | 31-2811 | Mini-manual |
|
- | |||||
| 1 | 31-1819 | Instruction, Installatio |
|
- | |||||
| 80 | WE4M198 | Resistor |
|
- | |||||
| 411 | WE1M341 | Cover, Plate |
|
- | |||||
| 414 | WE1M367 | Strap, Ground |
|
- | |||||
| 419 | WE4X168 | Block, Terminal |
|
$ 29.10 | |||||
| 461 | WZ05X0158 | Screw, Ground |
|
- | |||||
| 530 | WE17M24 | Motor & Pulley |
|
- | |||||
| 3001 | WE20X695 | Top, Cover Ad |
|
- | |||||
| 3002 | WE2M97 | Screw |
|
- | |||||
| 3003 | WE1X1079 | Bumper |
|
- | |||||
| 3004 | WE1X1080 | Clip, Top Cover |
|
- | |||||
| 3006 | WE2X263 | Screw 10-16x1/2 Hxw |
|
- | |||||
| 3007 | WE2X196 | Speed Clip |
|
- | |||||
| 3008 | WE20X697 | Panel, Side Ad |
|
- | |||||
| 3009 | WE4M264 | Timer |
|
- | |||||
| 3011 | WE2X321 | Speed Clip |
|
- | |||||
| 3012 | WE1M317 | Speed Clip |
|
- | |||||
| 3013 | WE10M87 | Door, Outer Ad |
|
- | |||||
| 3014 | WE10M99 | Door, Inner Ad |
|
- | |||||
| 3018 | WW03L00119 | Gasket, Door (Replaces: WE9M16) |
|
Immediately | $ 24.11 | ||||
| 3020 | WE4M41 | Switch, Door |
|
- | |||||
| 3025 | WE19M1151 | Trim, Switch |
|
- | |||||
| 3026 | WE20M280 | Front, Cabinet Ad |
|
- | |||||
| 3027 | WE14M60 | Duct, Air |
|
- | |||||
| 3028 | WE9X38 | Seal, Felt (Replaces: WE9X35) |
|
$ 58.83 | |||||
| 3029 | 5366021400 | Latch, Door (Replaces: WE1M197) |
|
Immediately | $ 62.21 | ||||
| 3030 | WE3M21 | Bearing, Drum |
|
- | |||||
| 3031 | WE4M145 | Switch, Start |
|
$ 77.15 | |||||
| 3032 | WE4M265 | Switch, Temp. |
|
- | |||||
| 3033 | WE1M193 | Bracket, Cabinet Front |
|
$ 121.62 | |||||
| 3034 | WE1X408 | Cable Clip |
|
- | |||||
| 3036 | WE4X721 | Receptacle (120v) |
|
- | |||||
| 3041 | WE1M404 | Slide |
|
- | |||||
| 3042 | WW02L00754 | Grid (Replaces: WE1M406) |
|
Immediately | $ 49.25 | ||||
| 3043 | WW02L00754 | Slide, Grid (Replaces: WE1M407) |
|
Immediately | $ 49.25 | ||||
| 3044 | WW02L00178 | Gasket (Replaces: WE9M17) |
|
Immediately | $ 19.56 | ||||
| 3045 | WE1M465 | Insulation, Cabinet |
|
- | |||||
| 3046 | WW02A00097 | Screw (Replaces: WE2M153) |
|
$ 3.97 | |||||
| 3047 | WG04F00431 | Filter (Replaces: WE18M20) |
|
Immediately | $ 26.73 | ||||
| 3048 | WE1M456 | Shield, Start Switch |
|
- | |||||
| 3049 | 5366021400 | Strike (Replaces: WE1M314) |
|
Immediately | $ 62.21 | ||||
| 3051 | WE1M315 | Hinge, Door |
|
- | |||||
| 3053 | WE1X1264 | Knob, Timer Ad |
|
- | |||||
| 3054 | WE1M466 | Knob, Start Switch Ad |
|
- | |||||
| 3055 | WW02L00643 | U Clip (Replaces: WE1M140) |
|
Immediately | $ 18.66 | ||||
| 3056 | WH2M385 | Screw |
|
- | |||||
| 3057 | WE2M150 | Screw Ad |
|
- | |||||
| 3058 | WH1X1208 | Knob, Switch Temp Ad |
|
- | |||||
| 3062 | WE1X1087 | Knockout |
|
- | |||||
| 3063 | WE1X1088 | Knockout - Bottom |
|
- | |||||
| 3064 | WE20M278 | Cabinet, Base & Rear |
|
- |
