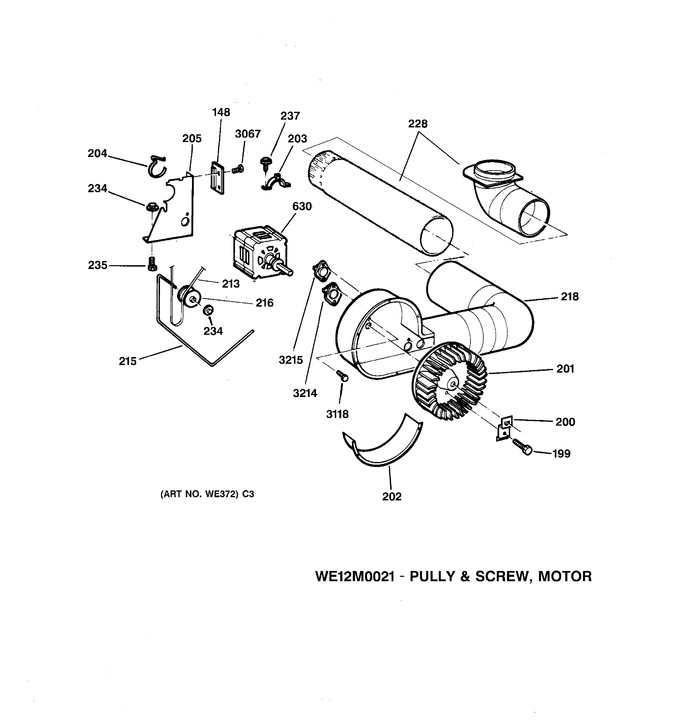

2 - Blower
3 - Drum
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 148 | WE4X499 | Resistor & Board |
|
- | |||||
| 199 | WE2M98 | Screw |
|
- | |||||
| 200 | WG04A01065 | Clamp (Replaces: WE1X688) |
|
$ 73.76 | |||||
| 201 | WW02F00183 | Wheel, Blower (Replaces: WE16X16) |
|
$ 68.05 | |||||
| 202 | WE1X689 | Baffle, Blower Housing |
|
- | |||||
| 203 | WE13X182 | Strap, Motor |
|
- | |||||
| 204 | WE1X921 | Strap, Motor |
|
- | |||||
| 205 | WE13M22 | Bracket, Motor |
|
- | |||||
| 213 | WE12X79 | Belt, Drive |
|
- | |||||
| 215 | WW02F00171 | Spring, Idler (Replaces: WE3M18) |
|
$ 24.91 | |||||
| 216 | WW02F00871 | Pulley, Idler (Replaces: WE12M8) |
|
Immediately | $ 5.96 | ||||
| 218 | WE14X176 | Housing, Blower |
|
- | |||||
| 228 | WE14X174 | Pipe, Exhaust |
|
- | |||||
| 234 | WE2X154 | Palnut |
|
$ 55.13 | |||||
| 235 | WE2X194 | Screw |
|
- | |||||
| 237 | WE2M148 | Screw |
|
- | |||||
| 3067 | WE2X343 | Screw |
|
- | |||||
| 3118 | WH2M342 | Screw |
|
- | |||||
| 3214 | WE4X722 | Thermostat |
|
- | |||||
| 3215 | WE4M195 | Thermostat Bias |
|
- |
