1 - Cabinet, Front Panel, Door & Control Panel


2 - Blower

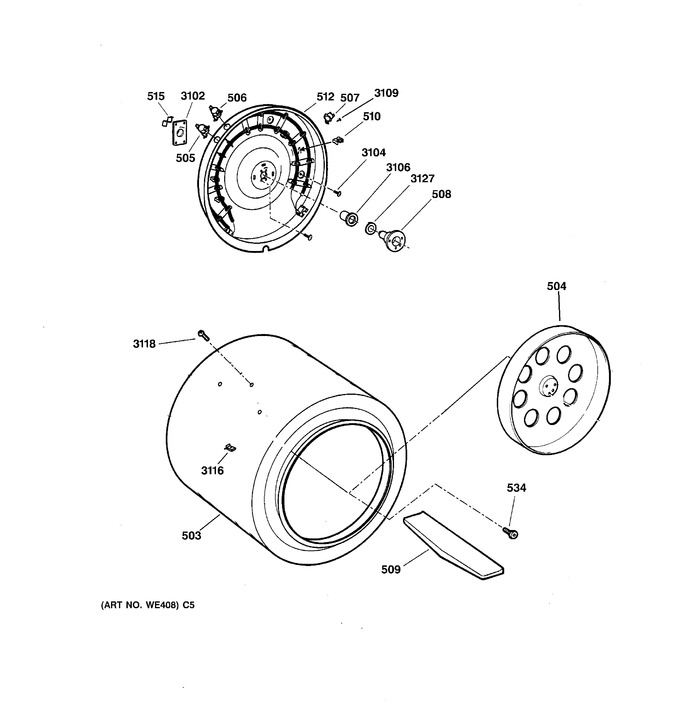

3 - Drum


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
503	WE21X61		Drum		Appelez-nous	-
504	WE14X173		Deflector, Heat		Appelez-nous	-
505	WE4M160		Thermostat, Safety		Appelez-nous	-
506	WG04F02270		Thermostat, Safety   (Replaces: WE4M137)			Immediately	$ 14.19
507	WE4M173		Thermostat		Appelez-nous	-
508	WE25M40		Drum Shaft & Bracket   (Replaces: WE3X39)			Immediately	$ 157.05
509	WE1X1093		Baffle, Drum		Appelez-nous	-
510	WG04F05016		Coil Support, Ceramic   (Replaces: WE1M452)				$ 4.04
512	WW02A00049		Housing, Heater Asm.   (Replaces: WE11M23)			Immediately	$ 181.15
515	WE1X627		Strap, Ground		Appelez-nous	-
534	WE2X153		Screw		Appelez-nous	-
3102	WG04A00067		Bearing, Retainer   (Replaces: WE1M300)				$ 8.14
3104	WW01A00521		Screw   (Replaces: WE1M280)				$ 3.97
3106	WE3M15		Sleeve, Bearing		Appelez-nous	-
3109	WE2M154		Screw		Appelez-nous	-
3116	WE2X326		Clip		Appelez-nous	-
3118	WH2M342		Screw		Appelez-nous	-
3127	WE2X195		Washer, Thrust		Appelez-nous	-
