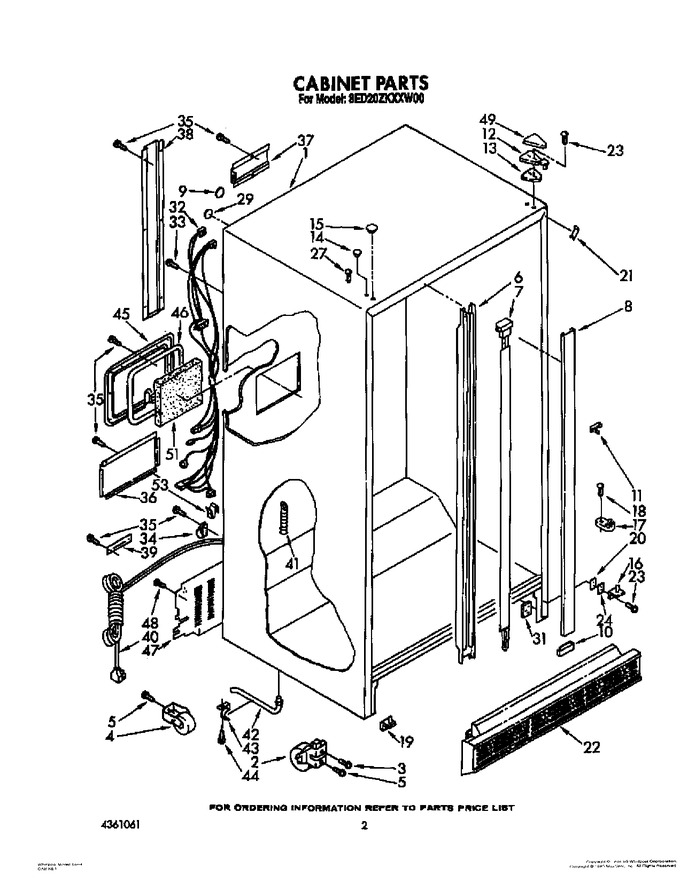

02 - Cabinet
03 - Refrigerator Liner
04 - Freezer Liner
05 - Refrigerator Door
06 - Freezer Door
07 - Unit
08 - Air Flow
09 - Control, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 2152011 | Front Roller (2) |
|
- | |||||
| 3 | 489333 | Screw, 5/16-24 X 1-1/4 |
|
- | |||||
| 4 | WPW10250570 | Roller, Rear (2) (Replaces: 981122) |
|
$ 42.18 | |||||
| 5 | WP489427 | Screw, (4) 1/4-28 X 1/2 (Replaces: 489339) |
|
$ 7.84 | |||||
| 6 | 2155015 | Mullion Rail |
|
- | |||||
| 7 | 1106997 | Heater, Mullion |
|
- | |||||
| 8 | 1123968 | Front Mullion Rail (golden Harvest) |
|
- | |||||
| 8 | 1123966 | Front Mullion Rail (white) |
|
- | |||||
| 8 | 1123969 | Front Mullion Rail (almond) |
|
- | |||||
| 9 | 1120224 | Hole Seal |
|
- | |||||
| 10 | 1118363 | Filler Bottom Mullion (golden Harvest) |
|
- | |||||
| 10 | 1118362 | Filler Bottom Mullion (almond) |
|
- | |||||
| 10 | 1118361 | Filler Bottom Mullion (white) |
|
- | |||||
| 11 | 1110607 | Clip, Ground |
|
- | |||||
| 12 | 1123514 | Hinge, Top (2) |
|
- | |||||
| 13 | 1123515 | Shim, Hinge (2) |
|
$ 6.58 | |||||
| 14 | 989957 | Hole, Plug (golden Harvest) |
|
- | |||||
| 14 | 849391 | Hole, Plug (white) |
|
- | |||||
| 14 | 989958 | Hole Plug (almond) |
|
- | |||||
| 15 | 1115352 | Hole Plug (white) |
|
- | |||||
| 15 | 1115353 | Hole Plug (golden Harvest) |
|
- | |||||
| 15 | 1115354 | Hole Plug (almond) |
|
- | |||||
| 16 | 2151619 | Hinge Bottom (r.h.) |
|
- | |||||
| 17 | WPW10329686 | Door Closer Lower Cam (2) (Replaces: 1115901) |
|
Immediately | $ 5.90 | ||||
| 18 | WP489399 | Screw (2) (Replaces: 489358) |
|
$ 7.30 | |||||
| 19 | 2151620 | Hinge Bottom (l.h.) |
|
- | |||||
| 20 | 1129868 | Spacer, Hinge |
|
- | |||||
| 21 | 1110709 | Filler, Wrapper (almond) |
|
- | |||||
| 21 | 1110708 | Filler, Wrapper (white) |
|
- | |||||
| 21 | 1110710 | Filler, Wrapper (golden Harvest) |
|
- | |||||
| 22 | 1129001 | Grille |
|
- | |||||
| 23 | 489327 | Screw |
|
- | |||||
| 24 | 836196 | Shim |
|
- | |||||
| 27 | WP488234 | Screw (Replaces: 488889) |
|
$ 7.08 | |||||
| 29 | 1129056 | Hole Seal 8 X 1/2 |
|
- | |||||
| 31 | 2147310 | Tap Plate (2) |
|
- | |||||
| 32 | 2149746 | Cabinet Harness |
|
- | |||||
| 33 | WP250830 | Screw, Ground (Replaces: 489048) |
|
$ 8.78 | |||||
| 34 | 937357 | Clamp |
|
- | |||||
| 35 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 36 | 1129193 | Cover, Wiring |
|
- | |||||
| 37 | 1108440 | Wiring Shield, Short |
|
- | |||||
| 38 | 1108441 | Wiring Shield, Long |
|
- | |||||
| 39 | 1105607 | Tube Clamp (2) |
|
- | |||||
| 40 | 937360 | Cord, Service |
|
- | |||||
| 41 | 842258 | Drain Ferrule |
|
- | |||||
| 42 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 32.90 | ||||
| 43 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 11.28 | |||||
| 44 | 488978 | Screw |
|
- | |||||
| 45 | 1108443 | Cover, Plug |
|
- | |||||
| 46 | 1115321 | Sealing Gasket |
|
- | |||||
| 47 | 1105531 | Cover, Unit |
|
- | |||||
| 48 | WP489464 | Screw, 8 X 1/2 (6) (Replaces: 489337) |
|
Immediately | $ 8.38 | ||||
| 49 | 842010 | Hinge Cover (white) |
|
- | |||||
| 49 | 989896 | Hinge Cover (golden Harvest) |
|
- | |||||
| 49 | 989194 | Hinge Cover (almond) |
|
- | |||||
| 51 | 1118236 | Insulation |
|
- | |||||
| 53 | 548745 | Clip, Wire (2) |
|
- |
