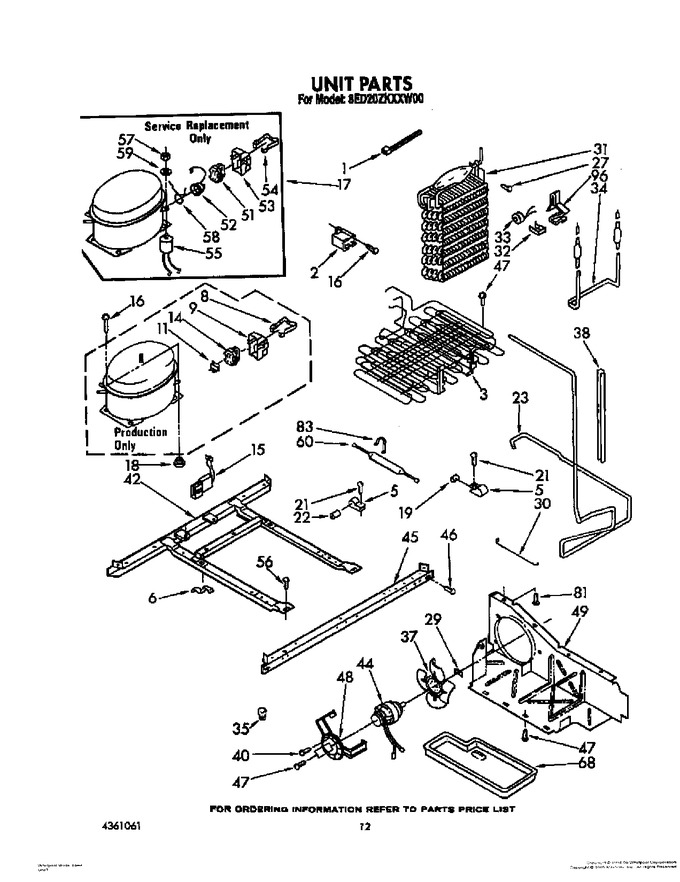

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	851095		Strap		Appelez-nous	-
2	WPW10662129		Capacitor, Run   (Replaces: 1118581)			Immediately	$ 58.86
3	1127573		Condenser		Appelez-nous	-
5	510716		Clamp (2)		Appelez-nous	-
6	548744		Clip (2)		Appelez-nous	-
8	938384		Strap, Cover		Appelez-nous	-
9	1108115		Cover		Appelez-nous	-
11	1108114		Overload		Appelez-nous	-
14	WP2262181		Relay   (Replaces: 1108143)				$ 122.65
15	1118850		Housing Plug		Appelez-nous	-
16	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489373)				$ 7.42
17	482981		Compressor (includes Items 51, 52, 53, 54, 55, 57, 58 & 59) (also Order 876765 Tube Kit)		Appelez-nous	-
18	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
19	WP2158826		Dampener   (Replaces: 836075)				$ 1.73
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 21.16
22	510769		Dampener		Appelez-nous	-
23	1127577		Exchanger, Heat		Appelez-nous	-
27	W11693756		Screw, 8 X 1/2   (Replaces: 488687)			Immediately	$ 14.06
29	WP486692		Nut, Speed   (Replaces: 486692)				$ 7.82
30	1105612		Guard, Fan				$ 40.58
31	1106987		Evaporator		Appelez-nous	-
32	513584		Clamp		Appelez-nous	-
33	WP4387499		Bimetal, Defrost   (Replaces: 2154544)				$ 120.86
34	2154542		Heater, Defrost		Appelez-nous	-
35	227991		Wire Connector		Appelez-nous	-
37	1108179		Blade, Fan				$ 49.54
38	1114634		Sleeve		Appelez-nous	-
40	681390		Screw, 8-32 X 3/8 (3)   (Replaces: 489019)				$ 13.06
42	1127942		Frame		Appelez-nous	-
44	833697		Motor, Fan   (Replaces: 2149963)			Immediately	$ 88.15
45	2149717		Rail, Front		Appelez-nous	-
46	489340		Screw, 5/16-18 X 5/8 (4)		Appelez-nous	-
47	488624		Screw, 8 X 3/8		Appelez-nous	-
48	548695		Bracket, Fan Motor		Appelez-nous	-
49	1127938		Air, Baffle		Appelez-nous	-
51	WP2262181		Relay   (Replaces: 1108143)				$ 122.65
52	483037		Overload		Appelez-nous	-
53	1105015		Cover, Terminal		Appelez-nous	-
54	938384		Terminal Strap		Appelez-nous	-
55	482996		Capacitor		Appelez-nous	-
56	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 7.47
57	489142		Nut		Appelez-nous	-
58	1114190		Overload Spring		Appelez-nous	-
59	489143		Washer		Appelez-nous	-
60	W10843121		Drier   (Replaces: 1105550)			Immediately	$ 52.57
68	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
81	489050		Screw, 8-32 X 1/2				$ 692.56
83	1127590		Clamp, Dryer		Appelez-nous	-
96	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
96	1108431		Clamp (4)		Appelez-nous	-
96	978026		Valve, Access (5/16``)			Immediately	$ 128.09
96	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
96	978028		Valve, Access (1/2)		Appelez-nous	-
96	978029		Valve Access (5/8``)				$ 93.85
96	978030		Valve, Access (3/4``)				$ 130.71
96	876764		Valve, Access(3/16``)			Immediately	$ 91.35
