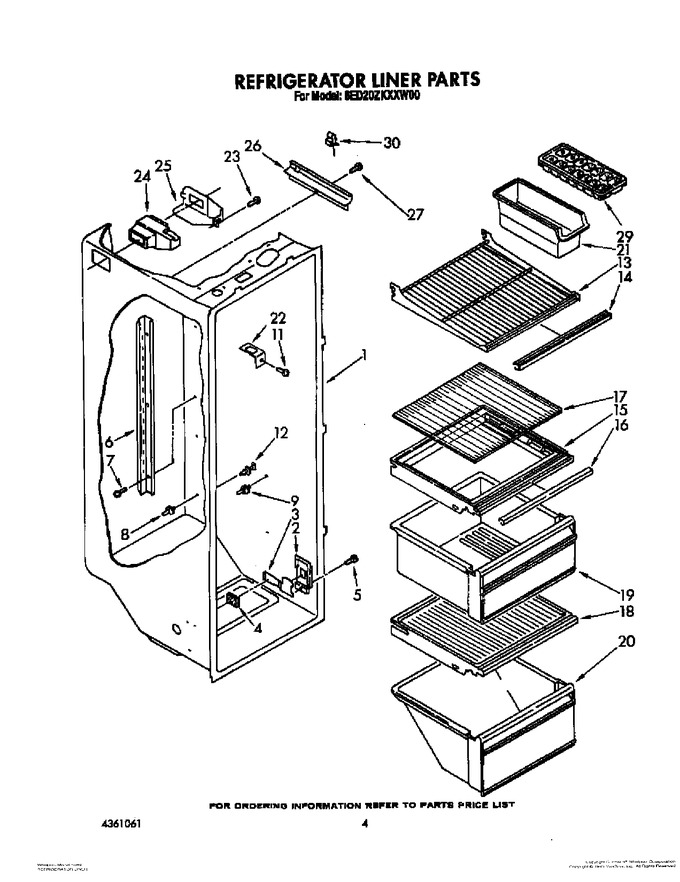

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	985468		Escutcheon, Meat Pan Control		Appelez-nous	-
3	984102		Slide, Meat Pan Control				$ 5.02
4	992358		Pad, Foam		Appelez-nous	-
5	486214		Screw 8-15 X 1/2		Appelez-nous	-
6	1108433		Ladder, Shelf (2)		Appelez-nous	-
7	WP488729		Screw, 8 X 1/2 (6)   (Replaces: 487539)			Immediately	$ 8.28
8	4388538		Stud (4)   (Replaces: 1110718)			Immediately	$ 32.85
9	WP2149540		Stud, Left Front   (Replaces: 2149540)				$ 10.96
11	WP488488		Screw (2)   (Replaces: 489290)				$ 8.52
12	4388538		Stud, Right Front   (Replaces: 2147997)			Immediately	$ 32.85
13	1118497		Shelf, Cantilever		Appelez-nous	-
14	1114302		Trim, Shelf (3)		Appelez-nous	-
15	WP1126289		Crisper Cover   (Replaces: 2148093)				$ 190.80
16	1110795		Trim, Cover		Appelez-nous	-
17	1114687		Glass, Shelf				$ 88.24
18	WP2148298		Cover, Meat Pan   (Replaces: 2157051)				$ 183.32
19	2148193		Pan, Crisper		Appelez-nous	-
20	2148192		Pan, Meat		Appelez-nous	-
21	WP982704		Container   (Replaces: 1116917)				$ 32.55
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 36.10
23	WP489478		Screw   (Replaces: 489242)				$ 8.18
24	WPW10151374		Air Diffuser Assembly   (Replaces: 2157403)			Immediately	$ 104.77
25	2152019		Cover, Air Diffuser				$ 90.33
26	2150330		Cover, Conduit		Appelez-nous	-
27	W10759522		Screw, 8 X 3/4   (Replaces: 486298)				$ 8.24
29	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.94

    View Diagram in Separate Window       Print Part List
