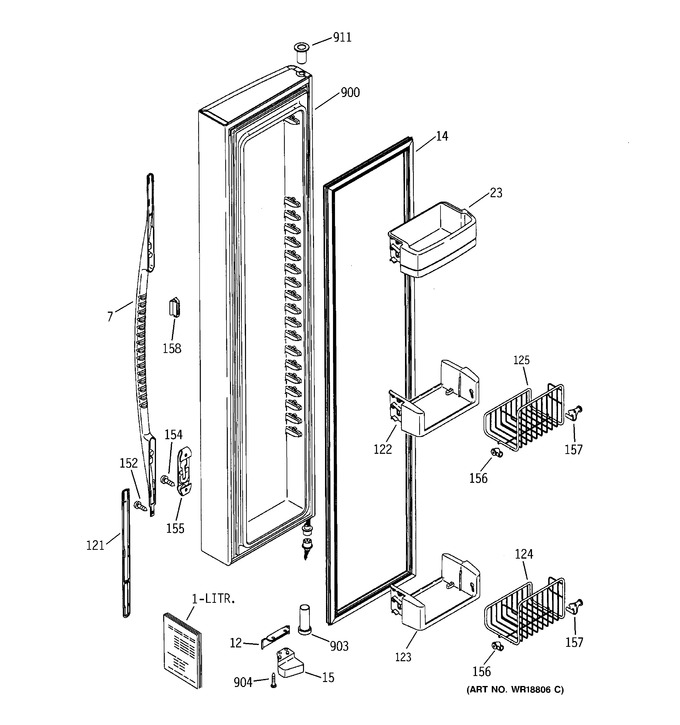

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-45943		Pm Mini Wiring Manual		Appelez-nous	-
1	49-60152		Manual-use & Care		Appelez-nous	-
7	WR12X10432		Handle Sxs Asm Bq		Appelez-nous	-
12	WR02X10786		Stop Door Bq		Appelez-nous	-
14	WR24X10065		Gasket Door Fz Wh		Appelez-nous	-
15	WR02X10638		Cam Closure Fz Wh		Appelez-nous	-
23	WR01L00038		Module Shelf Fz Fixed   (Replaces: WR71X10254)				$ 26.67
121	WR12X10431		Trim Handle Lower Bq		Appelez-nous	-
122	WR71X10256		Module Support Fz		Appelez-nous	-
123	WR71X10255		Module Support Fz		Appelez-nous	-
124	WR21X10024		Basket Wire Tiltout Fz		Appelez-nous	-
125	WR21X10025		Basket Wire Tiltout Fz		Appelez-nous	-
152	WR01A01241		Scr 8-18 Ab Fltr 5/8 S   (Replaces: WR01X10038)				$ 3.57
154	WR01X10213		Scr 8-18 Ab Rnt20 5/8 S		Appelez-nous	-
155	WR02X10643		Bracket Handle Lock		Appelez-nous	-
156	WR13X10130		Hinge Tiltout Fz Lh		Appelez-nous	-
157	WR13X10131		Hinge Tiltout Fz Rh		Appelez-nous	-
158	WR02X10646		Tail Mtng Hndl Retnr		Appelez-nous	-
900	WR78X10418		Door Foam Asm Fz Bq		Appelez-nous	-
903	WR01X10237		Thimble Door Btm Fz Bq		Appelez-nous	-
904	WR1X2134		Scr 10-32		Appelez-nous	-
911	WR01X10236		Thimble Door Top Bq		Appelez-nous	-
