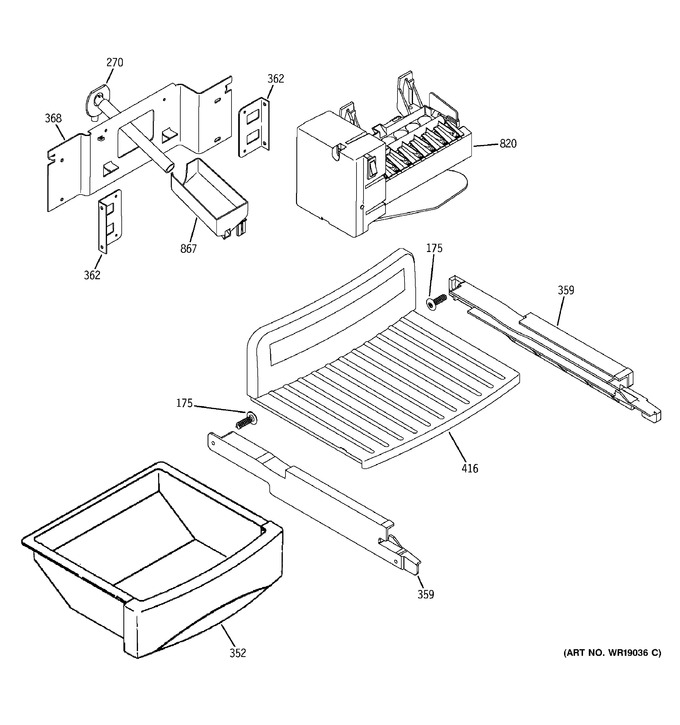

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
175	WR01X10035		Scr 8-18 Ab Ihw 5/8 S		Appelez-nous	-
270	WG03F00304		Grommet And Tube Asm   (Replaces: WR17X11082)				$ 21.44
352	WR30X10023		Bucket Non Disp		Appelez-nous	-
359	WR72X10048		Glide Bucket Rh Disp		Appelez-nous	-
359	WR72X10047		Glide Bucket Lh Disp		Appelez-nous	-
362	WR02X10656		Bracket Angle		Appelez-nous	-
368	WR02X10982		Bracket Im		Appelez-nous	-
416	WR71X10314		Shelf Chiller		Appelez-nous	-
820	WR30X10013		Icemaker Asm		Appelez-nous	-
867	WR29X10047		Cup Fill Im		Appelez-nous	-
