1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board

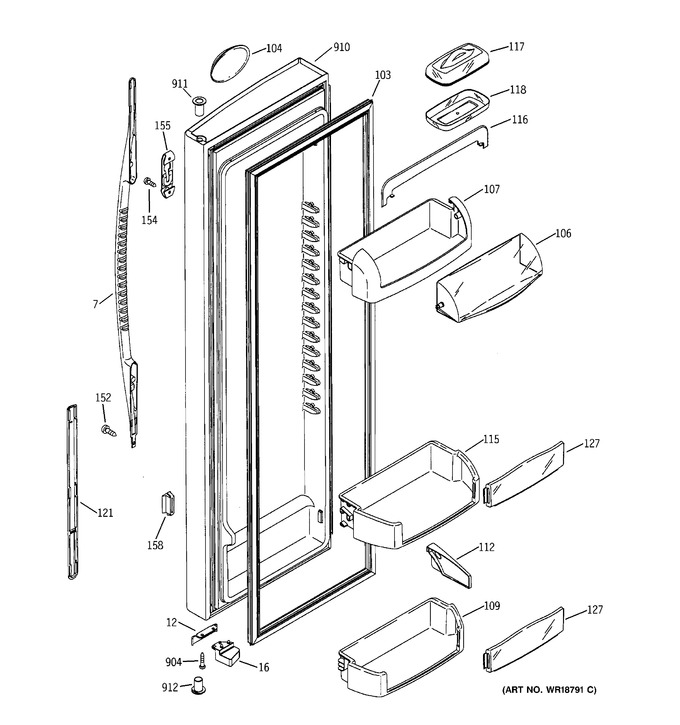

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WR12X10432		Handle Sxs Asm Bq		Appelez-nous	-
12	WR02X10786		Stop Door Bq		Appelez-nous	-
16	WR02X10637		Cam Closure Ff Wh		Appelez-nous	-
103	WR24X10064		Gasket Door Ff Wh		Appelez-nous	-
104	WR04X10108		Nameplate Ge		Appelez-nous	-
106	WR22X10022		Door Dairy Clear		Appelez-nous	-
107	WR22X10021		Compartment Dairy		Appelez-nous	-
109	WR71X10244		Module Shelf Ff		Appelez-nous	-
112	WR02X10639		Snugger		Appelez-nous	-
115	WR71X10253		Module Shelf Ff		Appelez-nous	-
116	WR22X10023		Trim Dairy Compartment		Appelez-nous	-
117	WR22X10019		Lid Dish Butter		Appelez-nous	-
118	WR22X10018		Dish Butter		Appelez-nous	-
121	WR12X10431		Trim Handle Lower Bq		Appelez-nous	-
127	WR01L04630		Insert Module   (Replaces: WR71X10289)			Immediately	$ 61.39
152	WR01A01241		Scr 8-18 Ab Fltr 5/8 S   (Replaces: WR01X10038)				$ 3.57
154	WR01X10213		Scr 8-18 Ab Rnt20 5/8 S		Appelez-nous	-
155	WR02X10643		Bracket Handle Lock		Appelez-nous	-
158	WR02X10646		Tail Mtng Hndl Retnr		Appelez-nous	-
904	WR1X2134		Scr 10-32		Appelez-nous	-
910	WR78X10404		Door Foam Asm Ff Bq		Appelez-nous	-
911	WR01X10236		Thimble Door Top Bq		Appelez-nous	-
912	WR01X10235		Thimble Door Btm Bq		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
