SELECT A DIAGRAM

1 - Control Panel


2 - Cooktop


3 - Body & Drawer Parts


4 - Door


5 - Door Lock

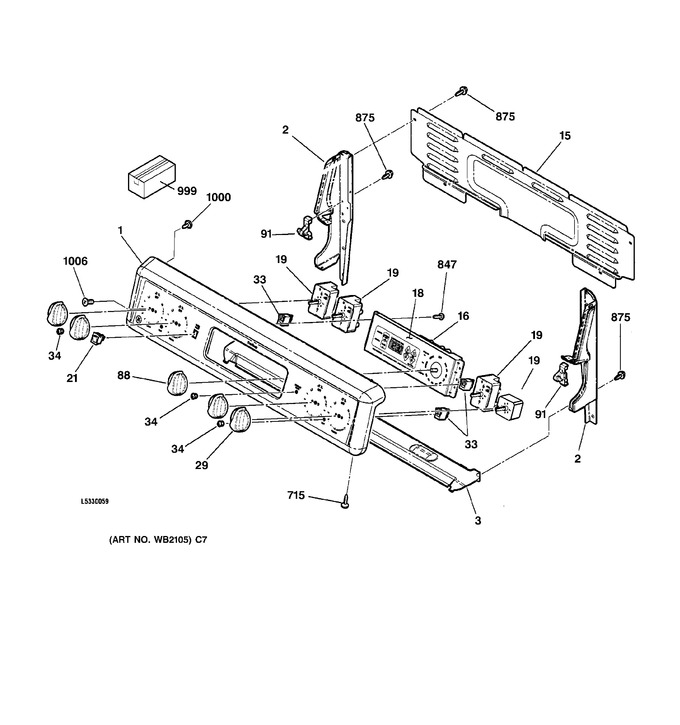

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36T10266		Trim Bracket Asm		Appelez-nous	-
2	WB36T10219		End Cap Rt/blk		Appelez-nous	-
2	WB36T10220		End Cap Lt/blk		Appelez-nous	-
3	WB02T10022		Heat Shield		Appelez-nous	-
15	WB34T10020		Control Cover		Appelez-nous	-
16	WB27T10102		T08 Control		Appelez-nous	-
18	WB27T10125		Faceplate Graphics Asm		Appelez-nous	-
19	WS01F01651		Control Infinite Switch   (Replaces: WB24T10027)			Immediately	$ 68.13
19	WG02F00292		Control Infinite Switch   (Replaces: WB24T10029)			Immediately	$ 67.07
21	WB24T10042		Switch Rocker Ovn		Appelez-nous	-
29	WB03T10072		Knob (ge)		Appelez-nous	-
33	WB27T10113		Indicator Light		Appelez-nous	-
34	WB25X5054		Indicator Light Lens		Appelez-nous	-
88	WB03T10071		T08 A Knob Ge		Appelez-nous	-
91	WB10T10002		Maintop Hinge		Appelez-nous	-
715	WD2X432		Screw		Appelez-nous	-
847	WB1X1180		Screw-black		Appelez-nous	-
875	WB01T10046		Scr 8-18 Ab Hw 9/16 Blk		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
999	WB18T10055		Sensor Wire Harness		Appelez-nous	-
999	WB64X93		Glass Cleaner		Appelez-nous	-
999	WB18T10061		Inf Wire Harness		Appelez-nous	-
999	31-10301		Instruction Install		Appelez-nous	-
999	31-10414		Instruction Install		Appelez-nous	-
999	WB6K5036		Razor Blade Scraper		Appelez-nous	-
999	49-8939		Pm Instruction Install		Appelez-nous	-
999	WB18T10059		Main Wire Harness		Appelez-nous	-
999	WB18T10060		Rad M.t. Wire Harness		Appelez-nous	-
999	49-8998		Manual Use & Care		Appelez-nous	-
999	31-13658		Manual Mini & Wd Asm		Appelez-nous	-
1000	WB01T10016		Scr 8-18 Ab Hxw 5/8 S		Appelez-nous	-
1006	WS01A01257		Scr 8-32 Tpt Flr .215 Sn   (Replaces: WB01T10020)				$ 3.97

    View Diagram in Separate Window       Print Part List
