SELECT A DIAGRAM
1 - Control Panel
2 - Cooktop

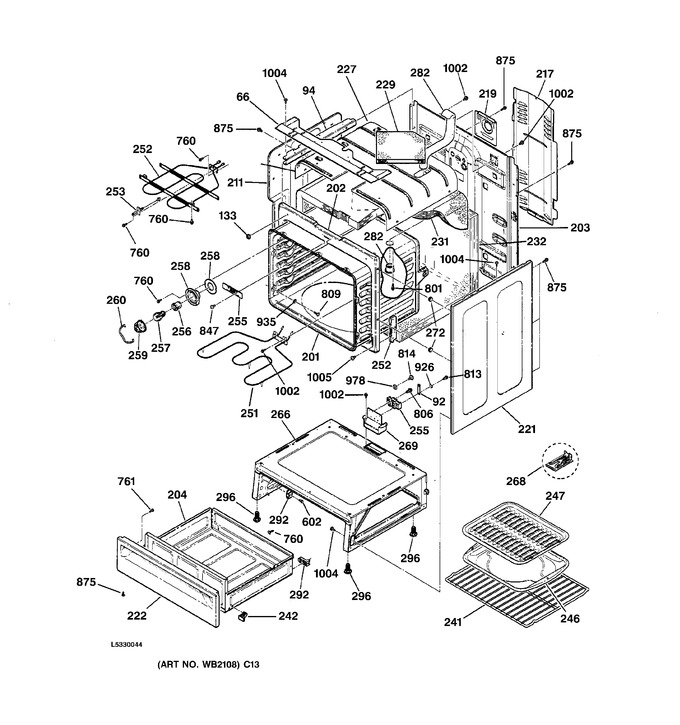

3 - Body & Drawer Parts
4 - Door
5 - Door Lock
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 66 | WB34T10023 | Enclosure Rangetop |
|
- | |||||
| 92 | WB02T10067 | Strap Ground |
|
- | |||||
| 94 | WB02T10038 | Radiant Chassis Brace |
|
- | |||||
| 133 | WB01T10021 | Maintop Bumper |
|
- | |||||
| 133 | WG02F03972 | Door Bumper (Replaces: WB01T10022) |
|
$ 6.35 | |||||
| 201 | WB63T10046 | Wrapper Ovn Cav Asm |
|
- | |||||
| 202 | WB63T10045 | Front Frame |
|
- | |||||
| 203 | WB63T10047 | Main Back |
|
- | |||||
| 204 | WB55T10046 | Storage Drawer Lining |
|
- | |||||
| 211 | WB02T10028 | Side Insulation Retainer |
|
- | |||||
| 217 | WB34T10012 | Back Cover |
|
- | |||||
| 219 | WB34T10011 | Recepticle Cover |
|
- | |||||
| 221 | WB63T10048 | Body Side/white |
|
- | |||||
| 222 | WB56T10024 | Front Panel Stor/white |
|
- | |||||
| 227 | WB02T10029 | Top Insulation Retainer |
|
- | |||||
| 229 | WB35T10017 | Vent Tube Insulation |
|
- | |||||
| 231 | WB35T10012 | Ovn Top/side Insulation |
|
- | |||||
| 232 | WB35T10011 | Insulation Ovn Back |
|
- | |||||
| 241 | WG02F04111 | Oven Rack (Replaces: WB48T10011) |
|
$ 103.56 | |||||
| 242 | WG02F04563 | Drawer Guide (Replaces: WB48T10012) |
|
$ 6.35 | |||||
| 246 | WB48T10006 | Broil Pan (261d656p010) |
|
- | |||||
| 247 | WB48T10005 | Bro Pan Grid |
|
- | |||||
| 251 | WG02F04464 | Unit Asm Bake (deluxe) (Replaces: WB44T10011) |
|
Immediately | $ 106.63 | ||||
| 252 | WB10T10005 | Hinge Receiver |
|
- | |||||
| 252 | WG02F04465 | Unit Asm Broil (3410w) (Replaces: WB44T10009) |
|
Immediately | $ 128.35 | ||||
| 253 | WS01F02431 | Sensor Asm (Replaces: WB23T10002) |
|
Immediately | $ 30.20 | ||||
| 255 | WB17T10003 | Main Terminal Block |
|
- | |||||
| 255 | WB7X7175 | Latch Trim |
|
- | |||||
| 256 | WS01F02438 | Push-in Recepticle (Replaces: WB08T10004) |
|
Immediately | $ 11.71 | ||||
| 257 | WX12X1510 | Oven Light Bulb |
|
- | |||||
| 258 | WB02T10027 | Oven Light Gasket |
|
- | |||||
| 258 | WG02F04577 | Oven Light Cup (Replaces: WB02T10037) |
|
$ 31.76 | |||||
| 259 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 260 | WB2X7694 | Lens Light Bail |
|
- | |||||
| 266 | WB39T10001 | Base Rivet Asm |
|
- | |||||
| 268 | WB02T10069 | Bracket Asm Anti Tip |
|
- | |||||
| 269 | WB17T10002 | Terminal Box |
|
- | |||||
| 272 | WG02L01603 | Side Support Panel (Replaces: WB02T10034) |
|
$ 4.20 | |||||
| 282 | WG02F13725 | Vnt Tube Asm (Replaces: WB38T10012) |
|
$ 34.02 | |||||
| 282 | WB38T10013 | Radiant Vent Tube |
|
- | |||||
| 292 | WG02L01594 | Frt Drawer Support (Replaces: WB48T10013) |
|
$ 6.35 | |||||
| 292 | WB02T10031 | Rear Drawer Support |
|
- | |||||
| 296 | WG02A00475 | Leg Leveler (Replaces: WB02X10521) |
|
Immediately | $ 6.35 | ||||
| 602 | WH2X941 | Scr 8-15 A Hxw 7/8 S |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5062 | Screw-brt. Ni. |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 806 | WH2X1186 | Scr 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 15.88 | |||||
| 813 | WS01A00445 | Screw (Replaces: WB1X1261) |
|
$ 13.90 | |||||
| 814 | WB1X5967 | Screw Asm.- Terminal Blk |
|
- | |||||
| 847 | WB1X1180 | Screw-black |
|
- | |||||
| 875 | WB01T10046 | Scr 8-18 Ab Hw 9/16 Blk |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 926 | WB1X1260 | Ground Washer |
|
- | |||||
| 935 | WB1K5174 | Washer |
|
- | |||||
| 978 | WB1X5968 | Nut 10-32 Nickle Plate |
|
- | |||||
| 1002 | WB01T10017 | Scr 8-18 Ab Ihw 3/8 S Ns |
|
- | |||||
| 1004 | WB01T10037 | Scr 8-18 Ba Tw 7/16 S |
|
- | |||||
| 1004 | WB01T10019 | Scr 8-18 Ab Trt 7/16 Sn |
|
- | |||||
| 1005 | WS01A01018 | Scr 10-32 Tr T (Replaces: WB01T10008) |
|
Immediately | $ 3.97 |
