SELECT A DIAGRAM
1 - Control Panel

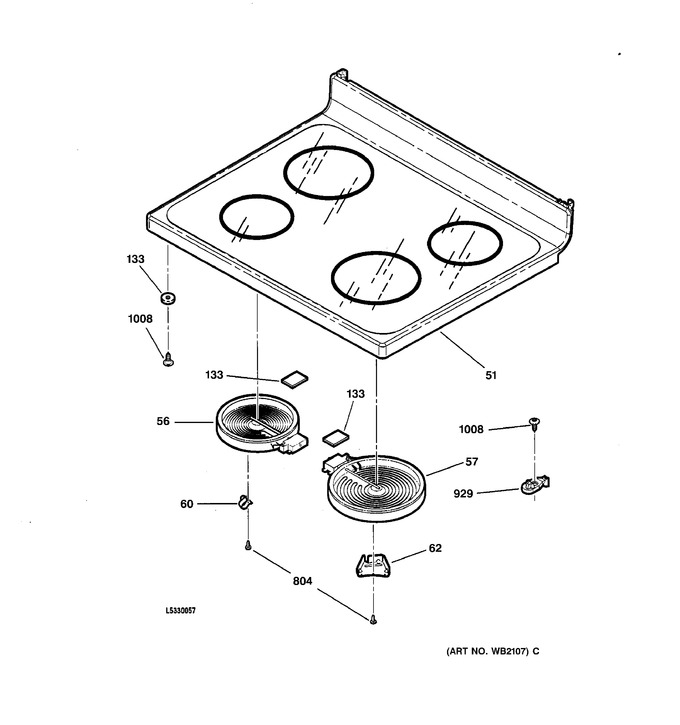

2 - Cooktop
3 - Body & Drawer Parts
4 - Door
5 - Door Lock
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 51 | WB62T10022 | Glass Maintop Kit Asm |
|
- | |||||
| 56 | WB30T10047 | Element Haliant 6" |
|
- | |||||
| 57 | WB30T10045 | Element Haliant 8" |
|
- | |||||
| 60 | WS01A00689 | Spring Radiant Element (Replaces: WB09T10002) |
|
$ 3.97 | |||||
| 62 | WB02T10041 | Bracket Radiant Element |
|
- | |||||
| 133 | WG02F03972 | Door Bumper (Replaces: WB01T10022) |
|
$ 6.35 | |||||
| 133 | WB01T10021 | Maintop Bumper |
|
- | |||||
| 804 | WB1X1127 | Screw |
|
- | |||||
| 929 | WB02T10026 | Maintop Strike |
|
- | |||||
| 1008 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- |
