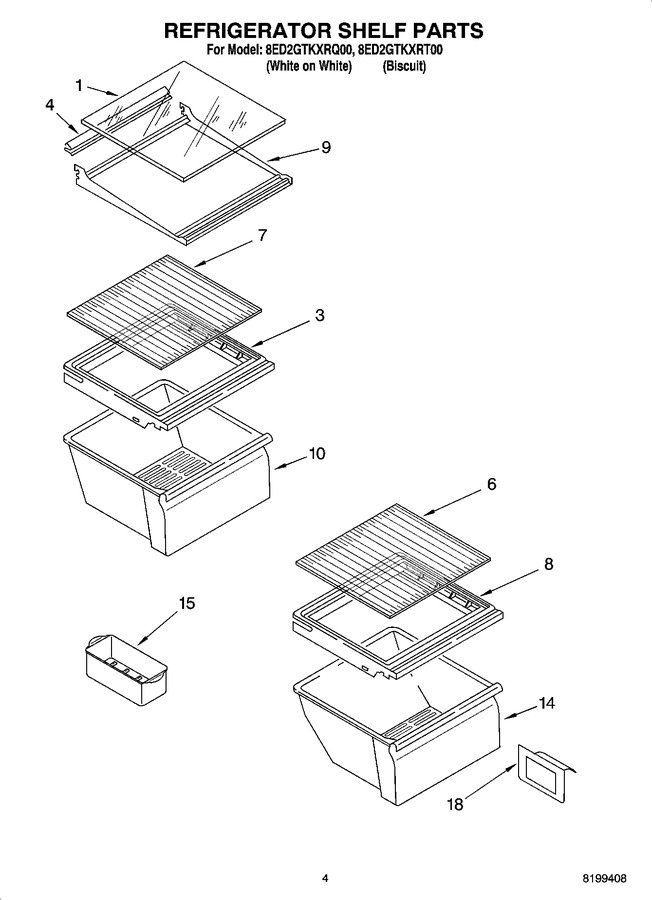

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2177986		Glass, Shelf (3)				$ 90.50
3	W10508993		Cover, Crisper   (Replaces: 2209698)				$ 291.29
4	1125594		Retainer (3)		Appelez-nous	-
6	W10864399		Glass, Meat Cover   (Replaces: 2179259)				$ 220.98
7	W10864399		Glass, Crisper Cover   (Replaces: 2174150)				$ 220.98
8	W10508993		Cover, Meat Pan   (Replaces: 2311726)				$ 291.29
9	2304542		Frame, Shelf (3)		Appelez-nous	-
10	WP2188661		Crisper Pan   (Replaces: 2188653)			Immediately	$ 162.07
14	WP2188664		Meat Pan   (Replaces: 2188654)			Immediately	$ 85.30
15	W10136387A		Egg Bin   (Replaces: 2216624)				$ 18.61
18	2179350		Deflector				$ 81.80
