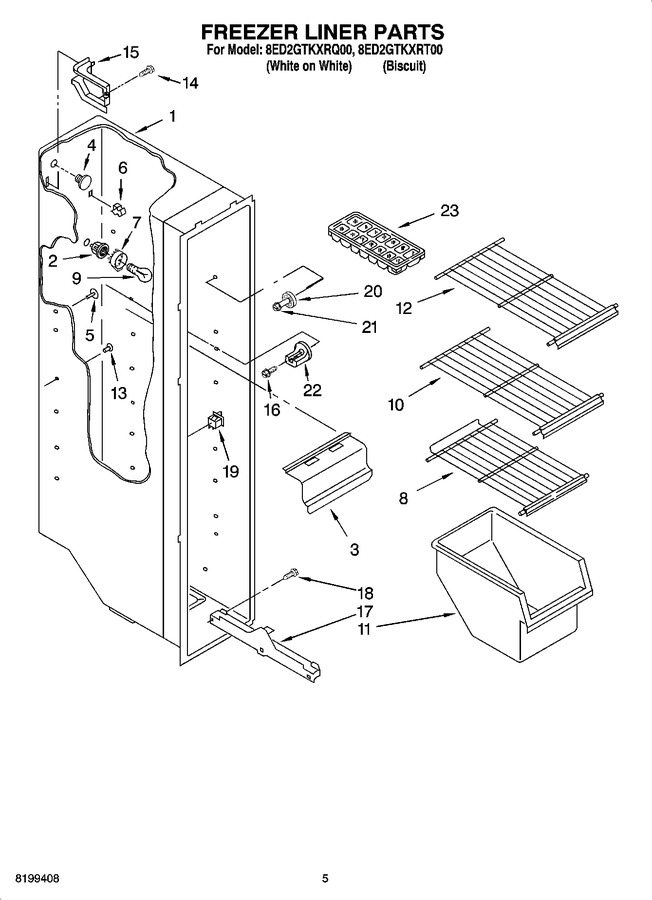

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Seviceable Part)		Appelez-nous	-
2	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16
3	WP2155595		Light Lens   (Replaces: 2155595)				$ 88.36
4	2223173		Plug, Fill Tube				$ 9.24
5	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	2167012		Shroud		Appelez-nous	-
8	2174265K		Shelf, Large (2)				$ 38.56
8	WP2174249K		Shelf, Small   (Replaces: 2174249K)				$ 221.75
9	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
10	2174266K		Shelf		Appelez-nous	-
11	2171707		Freezer Bin		Appelez-nous	-
12	2179325K		Shelf		Appelez-nous	-
13	2176134		Grommet				$ 5.83
14	WP489478		Screw   (Replaces: 489478)				$ 8.18
15	2160912		Wiring Cover		Appelez-nous	-
16	W10142289		Screw (9)   (Replaces: 3400893)				$ 9.61
17	1115383		Slide, Bin (left Side)		Appelez-nous	-
17	W10845583		Slide, Bin (right Side)   (Replaces: 1119293)				$ 130.12
18	718257		Screw   (Replaces: 489100)		Appelez-nous	-
19	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 39.09
20	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.87
21	WP3400806		Screw (9)   (Replaces: 8281158)				$ 8.10
22	2196207		Stud, Rear (9)				$ 7.61
23	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
